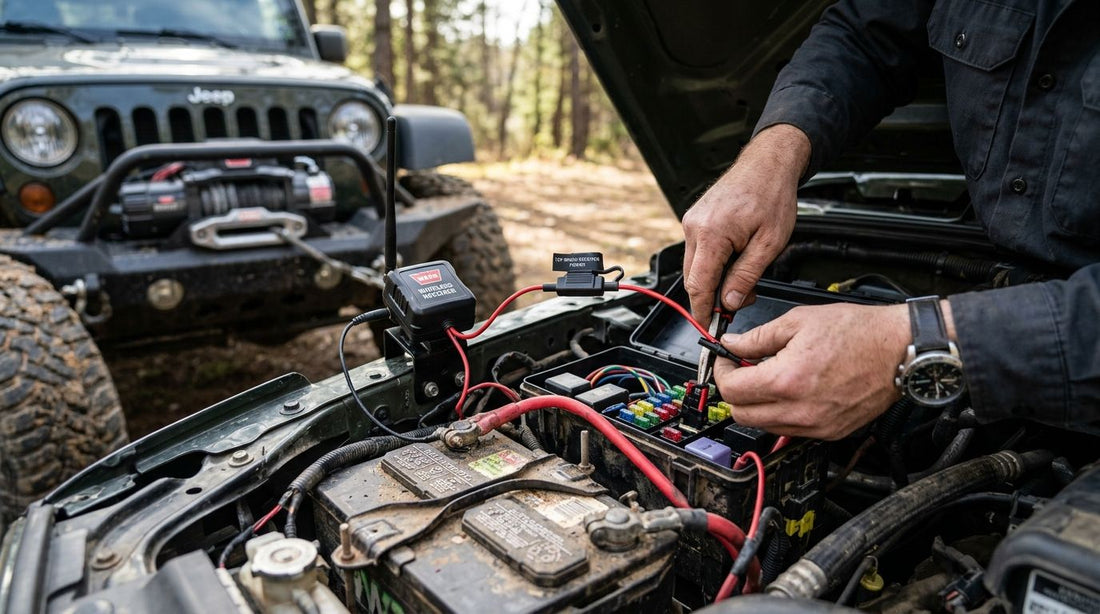

Picture being stuck in a ditch with the engine dead and the key pulled out, and the winch refusing to spool because its wireless remote only gets power when the ignition is switched on — that's the exact trap a factory harness sets for you. Wire the wireless winch remote's receiver to an ignition-off circuit instead, tapping power straight from the battery through a relay and an inline fuse, and the winch stays live whether the key is in the ignition or sitting on the passenger seat.
- Wire the wireless winch remote receiver to the battery through a relay, not the ignition-switched circuit, for true ignition-off winching in 2026.
- A 30-amp relay and a 40-amp inline fuse protect the ignition-off circuit without adding meaningful standby drain.
- Ground the receiver at the frame or battery negative directly — a bad ground is the most common wireless winch remote failure.
- Plan on 45 to 60 minutes for a first-time install with basic hand tools and a test light.
- A dual-battery isolator setup lets the remote stay hot without touching the starting battery's charge.
Why This Matters
A winch remote wired only to switched ignition power is fine for controlled winching in the driveway, but it fails the exact moment you need it — dead battery, key out, engine off after a stall on a grade. Tow operators and recovery crews wire the receiver to an ignition-off circuit for the same reason they wire a light bar into a truck's electrical system instead of tapping the fuse box for accessory power: constant, protected access beats convenience wiring every time.
TruckNTow has outfitted recovery rigs out of Detroit since 1959, and the wiring mistake that shows up most in field reports isn't the receiver itself — it's skipping the relay and running the remote straight off a switched line to save fifteen minutes. That shortcut works right up until the one job where it matters.
Before You Start
- Confirm your winch's control pack wiring diagram. Solenoid packs vary by manufacturer, and you need to know which two leads carry the in/out signal before you splice into anything.
- Gather a 30-amp automotive relay, a 40-amp inline fuse holder, 10-gauge primary wire, and a set of ring terminals — undersized wire on a 12-volt circuit is the second most common cause of a winch remote that clicks but doesn't spool.
- The gotcha: if you skip the fuse and wire the receiver straight to the battery post, a shorted wire downstream won't blow a breaker anywhere else in the truck — it'll just keep drawing until something melts or the battery is dead. Fuse it at the source, not just at the panel.
Set Up the Ignition-Off Power Tap
- Disconnect the negative battery terminal before touching anything. This isn't optional — the winch solenoid pack can arc if you're working a hot circuit.
- Identify a constant 12-volt source at the battery positive post rather than a fuse box slot marked "ignition" or "accessory." Ignition-off means the circuit never routes through the key switch.
- Run 10-gauge wire from the battery positive post to where the relay will sit, then crimp a ring terminal at the battery end.
Expected result: you have a hot 12-volt lead sitting at the relay location, tested with a multimeter to confirm it reads battery voltage with the key out.
Install the Relay and Inline Fuse
- Mount the 30-amp relay near the battery, away from exhaust heat and moving parts.
- Wire terminal 87 to the winch remote receiver's power input, terminal 30 to the battery positive lead you just ran, terminal 86 to a ground, and terminal 85 to the receiver's switched trigger lead if your unit has one.
- Install the 40-amp inline fuse holder between the battery post and relay terminal 30, as close to the battery as the harness allows.
Expected result: the relay clicks audibly when the receiver is powered on, and a multimeter across terminals 87 and 30 shows continuity only when the relay engages.
Mount and Pair the Wireless Receiver
- Bolt the receiver in a dry location within a few feet of the winch, away from the solenoid pack's magnetic field.
- Connect the receiver's ground wire directly to the frame or the battery negative terminal — not a painted body panel, which corrodes and breaks the ground path.
- Follow the transmitter's pairing sequence (usually holding the IN and OUT buttons together until the receiver's LED confirms sync).
Expected result: pressing IN or OUT on the handheld transmitter fires the corresponding relay click at the receiver from at least 30 feet away.
Route Power to the Winch Solenoid Pack
- Connect the receiver's output leads to the solenoid pack's IN and OUT control terminals, matching polarity to the wiring diagram from step one of Before You Start.
- Reconnect the negative battery terminal.
- Test the winch with the ignition off and the key removed from the truck entirely.
Expected result: the winch spools in and out on remote command with the engine off, confirming the ignition-off circuit is doing its job.
“If the relay clicks but the winch doesn't spool, the fault is downstream of the remote, not in it.”
Wiring a Winch Remote Through a Dual-Battery Isolator
Fleets running winch trucks daily often route the wireless winch remote through a dual-battery isolator instead of the starting battery alone, so remote standby power and winch draw come off an auxiliary battery that never touches cranking amps. Set this up by moving the relay's terminal-30 lead to the auxiliary battery's positive post rather than the starting battery, and letting the isolator manage charge balance between the two. This matters for trucks that also run switch panels for tow truck accessories, since it keeps the winch remote's circuit isolated from lighting and beacon loads that already draw off the primary battery.
The tradeoff: an isolator setup adds another failure point (the isolator itself) to troubleshoot, so it's worth it mainly for trucks running winch recoveries multiple times a week, not for occasional off-road use.
Troubleshooting the Ignition-Off Circuit
- Winch remote drains the battery overnight: the relay is likely wired to stay closed constantly instead of switching with the receiver. Check terminal 86's ground path and confirm the relay only engages on command.
- Remote pairs but nothing happens at the winch: test voltage at the solenoid pack's IN/OUT terminals with the transmitter pressed — if there's no voltage, the fault is between the relay and the solenoid, not the receiver.
- Winch runs in the wrong direction: the IN and OUT leads are swapped at the solenoid pack. Reverse them and retest.
- Range drops under 15 feet: check the transmitter's battery first, then move the receiver away from the solenoid pack, which throws off enough electrical noise to shorten range.
- Winch works with the key on but not with it off: the relay's terminal 30 lead is still tapped into a switched circuit somewhere upstream instead of the battery post directly.
Customize Your Workflow
Once the ignition-off circuit is proven out, the next upgrade most operators make is swapping steel cable for synthetic rope, which is lighter to handle and safer if it snaps under load — the tradeoffs are covered in the guide on spooling a winch cable without kinking. Pair that with a properly torqued mounting plate, since a receiver-and-relay job wired correctly still won't help if the winch itself shifts under load.
Shop the full line here — TruckNTow ships every order with free ground shipping, so gearing up a rig for ignition-off winching doesn't mean paying extra to get the parts to your bay.
FAQ
What is an ignition-off circuit on a truck?
An ignition-off circuit draws 12-volt power directly from the battery instead of through the key switch, so accessories like a wireless winch remote stay powered whether the ignition is on, off, or the key is removed.
Can a wireless winch remote be wired directly to the battery?
Yes, but only through a relay and an inline fuse — wiring the receiver straight to the battery post without protection risks a constant parasitic draw and an unfused short.
Do I need a relay to wire a winch remote to ignition-off power?
A relay is standard practice because it lets the receiver switch the winch remote circuit on demand instead of leaving a bare wire hot at the battery at all times.
Why does my wireless winch remote only work with the key on?
The receiver's power lead is tapped into a switched ignition or accessory circuit instead of a constant battery feed. Rerouting it to an ignition-off tap fixes this.
What gauge wire should I use for a winch remote receiver?
10-gauge primary wire handles a 30-amp relay circuit for a wireless winch remote receiver on most standard installs in 2026.
How much current does a wireless winch remote receiver draw at standby?
A properly relayed receiver draws next to nothing at standby since the relay only closes the circuit when the transmitter sends a signal, not continuously.
Is it safe to leave a winch remote wired hot all the time?
It's safe when the circuit runs through a fused relay that only closes on command; it's not safe when the receiver itself sits on an unfused, always-hot lead.
What causes a wireless winch remote to lose range?
Range drops usually come from a weak transmitter battery or a receiver mounted too close to the winch solenoid pack, which generates electrical interference.
One Last Thing
Most wireless winch remote failures reported in the field trace back to the ground wire, not the receiver or the relay — a receiver bolted to a painted panel instead of bare metal or battery negative will pair fine on the bench and fail intermittently once the truck's been through a wash or a winter of road salt. Run the ground straight to the frame or the battery negative terminal and skip the painted-panel shortcut entirely.
