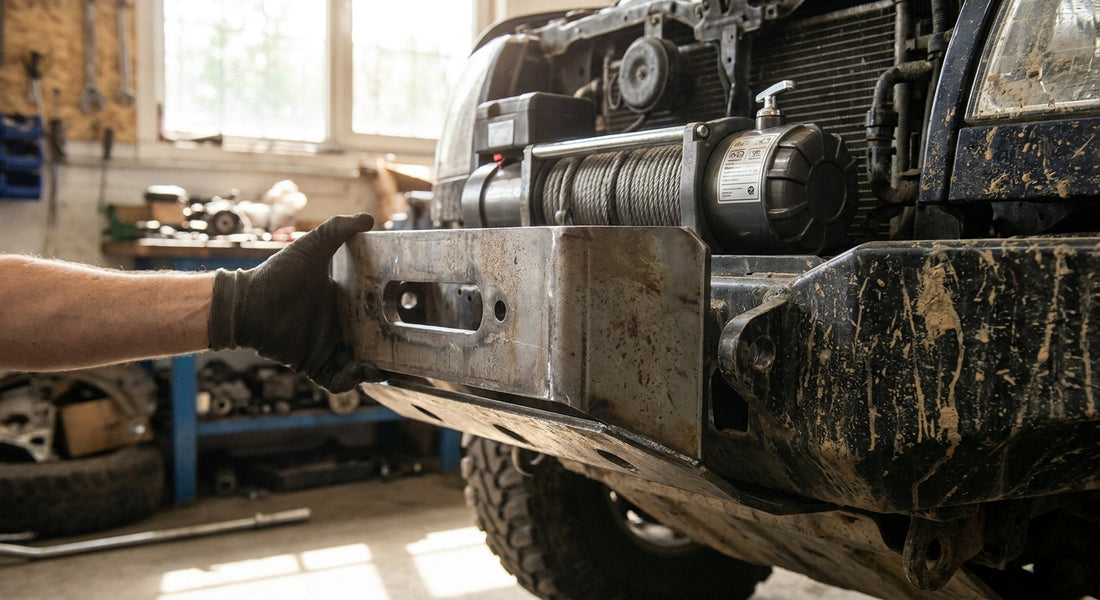

Bolt a winch onto a bumper that can't handle the load, and the first hard pull rips the mounting bolts clean through sheet metal that was never built for a static line pull, turning a routine recovery into a bent bumper and a truck that still isn't out of the ditch. Winch mounting plates for truck bumpers exist to solve exactly that problem: a plate spreads the pulling force across a wider footprint of the frame or bumper shell so the winch stays put when the line comes tight.
- Match the plate's rated capacity to your winch's pulling force, not just the winch's weight class.
- An 8-bolt or 10-bolt pattern beats a 4-bolt plate for anything over a 9,000-pound winch in 2026.
- Pair the plate with synthetic rope over steel cable if you're winching solo — VULCAN's 1/2-inch line rates 30,400 lbs MBS.
- Skip painted mild-steel plates for coastal or winter routes; powder-coated or hot-dip galvanized holds up through 2026 road salt.
Why This Matters
A mounting plate is the one piece of a winch install that nobody sees once the job's done, which is exactly why it gets skipped or cheaped out on. TruckNTow has outfitted trucking and recovery professionals since 1959, and the pattern holds true every winter: the calls about a failed recovery almost always trace back to hardware, not the winch itself.
A winch rated for 12,000 pounds is only as strong as the plate holding it to the frame. Undersize that connection and you've built a weak link into a system that's supposed to be the strongest part of your rig.
Who This Guide Is For
This is written for the truck owner or fleet manager mounting a winch on a front bumper for recovery, off-road pulls, or fleet-standard equipment on service trucks — not the guy bolting a decorative winch mount onto a show truck that never leaves the driveway. If you're running a wrecker, a repo unit, or a personal truck that sees real recovery duty in 2026, the criteria below apply directly to your build.
What to Look For in Winch Mounting Plates for Truck Bumpers
Rated Capacity vs. Winch Pulling Force
The plate's load rating has to exceed your winch's rated line pull, not just match the winch's shipping weight — a 9,500-pound winch under a double-line pull with a snatch block can momentarily see forces close to double the single-line rating. Buy a plate rated at least 25% above your winch's stated capacity so the margin covers snatch-block rigging and side-loading during angled pulls.
Bolt Pattern and Hole Spacing
Most plates use either a 4-bolt or an 8/10-bolt pattern, and the difference matters more than it looks: a 4-bolt plate concentrates stress on four points, while an 8 or 10-bolt pattern spreads the same force across more steel and more fasteners. For anything above a 9,000-pound winch, the wider pattern reduces the odds of elongated bolt holes after a season of hard pulls.
Fairlead Cutout and Roller Clearance
The plate needs a cutout sized for either a roller fairlead or a hawse fairlead without the rope or cable rubbing the plate's edge under load — that friction point is where synthetic rope frays fastest. If you're running a hawse fairlead with synthetic line, confirm the opening has rounded, smooth edges; a stamped edge with burrs will chew through a rope's outer sheath in a handful of pulls.
Steel Gauge and Finish
Plate steel typically runs 3/8-inch to 1/2-inch thick, and the finish matters as much as the thickness once the truck sees road salt through a Michigan or Midwest winter. Powder coating or hot-dip galvanizing holds up through 2026 road conditions far longer than a painted mild-steel plate, which starts showing surface rust within a season of winter driving.
Bumper and Frame Compatibility
A plate that bolts to a stock bumper's factory tow-hook holes is the cleanest install, but aftermarket bumpers and push bumpers on tow trucks often need a plate cut to a different hole spacing entirely. Measure your bumper's existing mounting points before ordering — a plate that needs new holes drilled into a structural bumper face is a bigger job than most shops budget for.
Weight and Clearance for Ground Effects
A heavier, thicker plate adds unsprung weight low on the front of the truck and can reduce ground clearance on trucks already running push bumpers or plow mounts. Weigh that tradeoff against your actual use case — a fleet service truck doing occasional recoveries doesn't need the same plate as a dedicated off-road recovery rig.
Gear That Pairs With a Solid Mount
A mounting plate is only half the system — the rope or cable running through it determines how the pull actually behaves under load. Here's what to run once the plate is bolted down.
The safe pick — synthetic rope for solo recoveries. VULCAN's 3/8-inch Dyneema synthetic rope rates 16,400 pounds MBS and weighs a fraction of steel cable, which matters when you're the only person on scene spooling line by hand. Buy if you're running recoveries alone or in cold weather where steel cable stiffens up.
The heavy-duty pick — 1/2-inch synthetic for bigger winches. The 1/2-inch Dyneema line steps up to 30,400 pounds MBS, giving you margin on winches in the 10,000-to-12,000-pound class without upsizing to steel. Buy for fleet trucks running larger winches on a regular recovery schedule.
The traditionalist pick — fiber-core steel cable extension. A 3/8-inch by 100-foot fiber-core extension cable rated at 12,000 pounds minimum breaking strength gives you extra reach without swapping your primary line, useful when a recovery angle puts the anchor point further out than expected. Consider this as a backup spool rather than your primary line if your winch already runs synthetic rope, since mixing rope and cable spools mid-recovery adds complication.
Once the rope or cable is sorted, the rigging around it decides how safely the pull happens. A snatch block doubles your effective pulling force and redirects the line around obstacles the mounting plate's fairlead can't clear on its own. For recoveries where the vehicle can't be pulled in a straight line, rigging a V-bridle off two frame-rated anchor points spreads the load and keeps the mounting plate from taking an off-angle side load it wasn't built for.
What to Avoid
- Universal-fit plates with slotted, oversized bolt holes. They look adjustable but slotted holes let the plate shift under load, which shears bolts faster than a fixed hole pattern ever would.
- Plates with no fairlead cutout radius. A sharp 90-degree edge on the cable or rope opening will cut into your line within a season, regardless of how thick the plate steel is.
- Thin stamped-steel plates sold as universal recovery mounts. A plate under 3/8-inch steel bends under a hard side-load pull, and once it bends the bolt holes elongate and the whole assembly loosens.
Verdict Comparison
| Criteria | 4-Bolt Plate | 8/10-Bolt Plate | Fabricated Custom Plate |
|---|---|---|---|
| Best winch class | Under 8,000 lbs | 9,000–15,000 lbs | Any, built to spec |
| Install difficulty | Easiest | Moderate | Hardest — cutting/drilling |
| Typical steel gauge | 1/4–3/8 inch | 3/8–1/2 inch | Shop's choice |
| 2026 verdict | Consider for light-duty | Buy for most recovery trucks | Consider for fleet standardization |
FAQ
What's the best winch mounting plate for a truck bumper in 2026?
An 8 or 10-bolt plate in 3/8 to 1/2-inch steel rated at least 25% above your winch's line-pull rating is the safest general-purpose choice for 2026. Fabricated custom plates edge it out for fleets standardizing across mismatched bumper models.
Do I need a mounting plate if my bumper already has a winch tray?
A factory winch tray on a purpose-built bumper often doesn't need an additional plate, but check the tray's rated capacity against your winch's pulling force first. Aftermarket and push bumpers frequently need a plate even with a tray cutout already present.
How much weight can a winch mounting plate hold?
Load ratings vary by gauge and bolt pattern, with 3/8-inch 8-bolt plates commonly rated in the 9,000 to 15,000-pound range. Always size the plate to your winch's line-pull rating plus margin for angled or double-line pulls.
Is a hidden winch mount better than a bumper-mounted plate?
Hidden mounts preserve the factory bumper look but generally accept smaller winches and give up some fairlead clearance compared to a purpose-built plate. For recovery-duty trucks, an exposed plate with a proper fairlead cutout is the more practical choice.
Can I use a mounting plate on a bumper without a fairlead?
No — running rope or cable without a fairlead lets the line rub directly against the plate's edge, which frays synthetic rope and kinks steel cable within a handful of pulls. The fairlead cutout is not optional hardware.
How much does a winch mounting plate cost?
Stock plates typically run in the low hundreds of dollars depending on steel gauge and finish, while fabricated custom plates cost more based on shop labor. Check current pricing directly since steel costs shift through 2026.
What rope or cable should I run once the plate is installed?
For solo recovery work, 3/8-inch synthetic rope rated 16,400 lbs MBS covers most winches up to 9,500 lbs. Larger winches in the 10,000 to 12,000-lb class pair better with 1/2-inch synthetic rope rated 30,400 lbs MBS.
Do mounting plates fit both steel cable and synthetic rope winches?
Yes, the plate itself is line-agnostic — what matters is the fairlead type bolted into the plate's cutout. A hawse fairlead suits synthetic rope while a roller fairlead handles steel cable without cutting the sheath.
One Last Thing
The detail most installers miss isn't the plate at all — it's torque. Bolts on a winch mounting plate back off faster than almost any other fastener on the truck because the winch delivers shock loading every time the line comes tight, not a steady static pull, so the plate needs a torque check after the first few real recoveries, not just at install.
Run the numbers, size the plate above your winch's rating, and pair it with line that matches the job. That's the difference between a mount that holds through 2026 and one that's back on the lift by spring.
