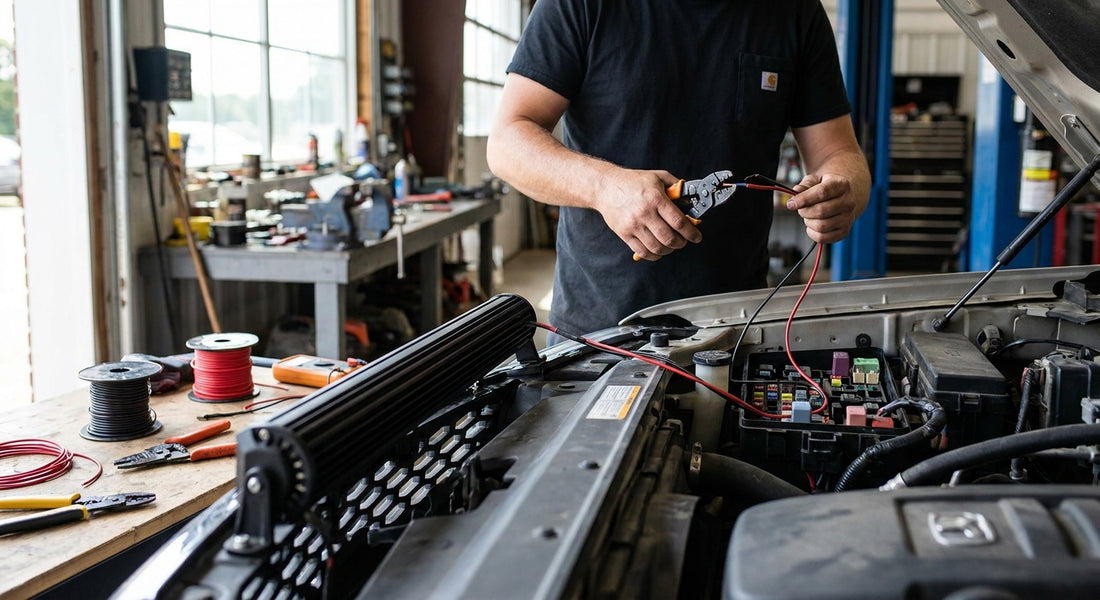

Running a wrecker or rollback into a dark recovery scene with only stock headlights working against oncoming traffic is how good techs end up standing in the path of a distracted driver — a light bar wired straight to the battery through a relay throws real warning light down the shoulder long before anyone gets close enough to matter.
- Wire a light bar off the battery through a 40-amp relay and 30-amp inline fuse, not the factory accessory circuit.
- 10-gauge wire handles a 100-300 watt light bar over a 15-20 foot run without voltage drop.
- Skip cigarette-lighter or fuse-box taps — they can't carry the amperage a light bar pulls under load.
- Ground the light bar to bare frame metal, not an existing harness splice, to stop flicker at idle.
Why This Matters
Tapping a factory accessory wire or a cigarette-lighter circuit to power a light bar feels quick, but that circuit starves the moment other systems pull current, and that's exactly when a light bar for a wrecker or rollback truck needs full output — mid-recovery, on a shoulder, at night. Wiring the light bar direct to the battery through a relay isolates it from every other circuit in the cab, so a blown horn fuse or a dead blower motor never dims the one light warning oncoming traffic you're there.
In 2026, most fleet safety reviews check whether auxiliary lighting runs on its own fused circuit separate from factory wiring, and a battery-direct install with a 30-amp inline fuse and a 40-amp relay clears that check without rework six months later. TruckNTow has supplied trucking and towing accessories to working crews since 1959, and the wiring mistakes that cause comebacks haven't changed much in that time — undersized wire, no relay, and grounds tied to paint instead of bare metal.
What You'll Need
- Light bar with its factory wiring pigtail
- 12-volt automotive relay rated at 40 amps
- Inline fuse holder with a 30-amp fuse, mounted within 12 inches of the battery
- 10-gauge primary wire, enough for a 15-20 foot run from battery to switch to light bar
- Wire loom or split conduit to protect the run through the engine bay
- Ring terminals, butt connectors, and heat-shrink tubing
- Rocker or toggle switch for the cab
- Crimping tool, heat gun, and a multimeter
- Drill with a step bit if you're adding a new mounting point
- A mounting point for the light bar itself — a universal mirror-mount bracket works when there's no factory bracket location
Wiring Steps
1. Confirm Amperage and Pick Your Wire Gauge
Check the light bar's rated wattage before buying a single foot of wire — a 100-watt bar pulls roughly 8 amps at 12 volts, while a 300-watt bar climbs closer to 25 amps under load. For any run under 20 feet at that draw, 10-gauge wire keeps voltage drop low enough that the light bar hits full brightness instead of running dim. The common mistake here is reusing 16-gauge wire left over from a trailer light job — it works for marker lights, not for a light bar pulling 20-plus amps.
2. Mount the Relay and Fuse Holder Near the Battery
Bolt the relay bracket to a solid point within a foot or two of the battery, and wire the inline fuse holder directly off the positive terminal before the relay. This keeps the entire hot side of the circuit protected from the first inch of wire, so a short anywhere downstream blows the 30-amp fuse instead of melting the harness. Skipping the fuse holder to save ten minutes is the single most common cause of an engine-bay wiring fire on these installs.
3. Run the Power Wire Through the Firewall
Find an existing grommet or factory pass-through rather than drilling a new hole through the firewall — most trucks built after 2015 have at least one unused grommet near the brake booster. Feed the 10-gauge wire through in a loop to keep water from running down the wire into the cab, and seal the grommet with silicone once the wire is in place. A wire pulled tight with no drip loop is how cabs end up with a slow water leak nobody notices until winter.
4. Wire the Switch Panel Inside the Cab
Run the relay's trigger wire to a dedicated switched circuit, not the headlight circuit, so the light bar stays under your control regardless of what the headlights are doing. Mount the rocker switch somewhere reachable without looking down — most installers put it low on the dash within a few inches of the steering column. Wiring the trigger off the ignition-only circuit is the most common mistake, since it means the light bar can't run with the key off during a stationary recovery.
5. Ground the Light Bar to Bare Frame Metal
Scrape a mounting point down to bare metal, drill a hole if needed, and run a dedicated ground wire from the light bar directly to that point rather than piggybacking on an existing ground stud. A weak ground is the number one cause of flicker at idle, because a shared ground point carries voltage fluctuation from every other accessory on that circuit. Test resistance between the ground point and the negative battery terminal before buttoning anything up — it should read close to zero ohms.
6. Test the Circuit Before Buttoning It Up
Flip the switch with the engine off, then again with the engine running, and confirm the light bar holds steady brightness in both states. Check the fuse holder and relay for heat after five minutes of continuous run time — warm is normal, hot enough to not touch is not. Only after a clean test should you loom the wire, zip-tie it clear of moving parts, and close up the panels.
Safety Considerations
An unfused light bar circuit is a fire risk, full stop — the 30-amp inline fuse near the battery is not optional, and it needs to sit before the relay so the entire hot lead is protected. Route the wire away from exhaust components and moving belts, and use grommets anywhere the wire crosses metal, since bare 10-gauge wire against a sharp edge will chafe through insulation within a season of vibration.
Check your state's rules on lens color before mounting — amber and white are broadly accepted for work trucks, but red or blue lenses facing forward can violate state vehicle codes even in 2026. TruckNTow carries VULCAN PROSeries® hardware built to the same working-load standards the brand has applied to tie-downs and rigging since 1959, and that same attention to rated components applies to electrical parts: buy a relay and fuse holder rated above your expected draw, not right at it.
Maintenance and Care
Inspect connections twice a year, and every time before winter, since road salt corrodes exposed terminals faster than almost anything else on a work truck. Pack ring terminals with dielectric grease before crimping and again after any connection is opened, and swap any butt connector showing green corrosion rather than trying to clean it.
Check the ground point annually with a multimeter — corrosion under a ground lug reads as high resistance long before it causes a visible problem, and a flickering light bar in 2026 is usually a five-dollar ground fix, not a failed light bar.
Troubleshooting
- Light bar won't turn on at all — check the inline fuse first, then confirm the relay is getting a trigger signal with a multimeter on the switch side.
- Light bar flickers at idle but steadies at higher RPM — almost always a weak ground; run a new ground wire straight to bare frame metal.
- Relay clicks but the light bar stays dark — the trigger circuit is working but the main power leg isn't; check the fuse and the battery-side connection.
- Switch stays lit even when off — reversed polarity at the switch or a bad ground on the switch panel itself.
- Corrosion at connectors after one winter — connectors weren't sealed with heat-shrink or dielectric grease; redo them and add both this time.
- Light bar dims when other accessories run — the circuit shares a ground or power source with something else instead of running independently off the battery.
Tools and Resources
- Crimping tool rated for 10-gauge terminals
- Heat gun for heat-shrink connectors
- Multimeter for voltage and continuity checks
- Step bit for firewall or panel penetrations
- Wire loom or split conduit for engine-bay runs
- Dielectric grease for every exposed connection
Shop the current lighting and mounting hardware TruckNTow stocks for these builds, and every order ships free ground shipping to the shop or yard.
FAQ
What gauge wire do I need to wire a light bar?
10-gauge wire handles most 100-300 watt light bars over a 15-20 foot run without voltage drop. Go up to 8-gauge for longer runs or light bars pulling over 300 watts.
Do I need a relay to wire a light bar?
Yes — a 40-amp relay keeps the full amperage load off your cab switch and factory wiring. Without one, the switch and its wiring carry current they weren't built to handle.
Can I wire a light bar straight to the battery?
Yes, and it's the recommended method as long as a 30-amp inline fuse sits within 12 inches of the positive terminal. Running straight to the battery through a relay isolates the light bar from every other circuit in the truck.
What amp fuse should I use for a light bar?
A 30-amp inline fuse covers most 100-300 watt light bars with margin. Match the fuse rating to your relay, not just the light bar's draw.
Is it legal to run an amber light bar on a work truck?
Amber and white lighting is broadly accepted on work trucks in most states as of 2026, but rules on forward-facing red or blue lenses vary by state. Check your state's vehicle code before mounting.
How do I stop a light bar from flickering?
Flicker at idle is almost always a weak ground — run a dedicated ground wire to bare frame metal instead of sharing an existing ground point. Test resistance at the ground point with a multimeter to confirm the fix.
Can I wire a light bar without cutting into the factory harness?
Yes — running a dedicated circuit from the battery through a relay and fuse means you never splice into factory wiring at all. This keeps the light bar circuit independent and easier to troubleshoot later.
How long does it take to wire a light bar?
A battery-direct install with a relay, fuse, and cab switch typically takes 2-3 hours for a first-timer working carefully. Experienced installers with the wire pre-cut usually finish in under an hour.
One Last Thing
Most flicker complaints that come in after a light bar install trace back to the ground wire being tied into an existing bolt that's already carrying ground duty for something else — not a bad light bar, not a bad switch, just an overloaded ground point. Run one dedicated ground wire straight from the light bar to bare frame metal and most of the troubleshooting above never comes up.
