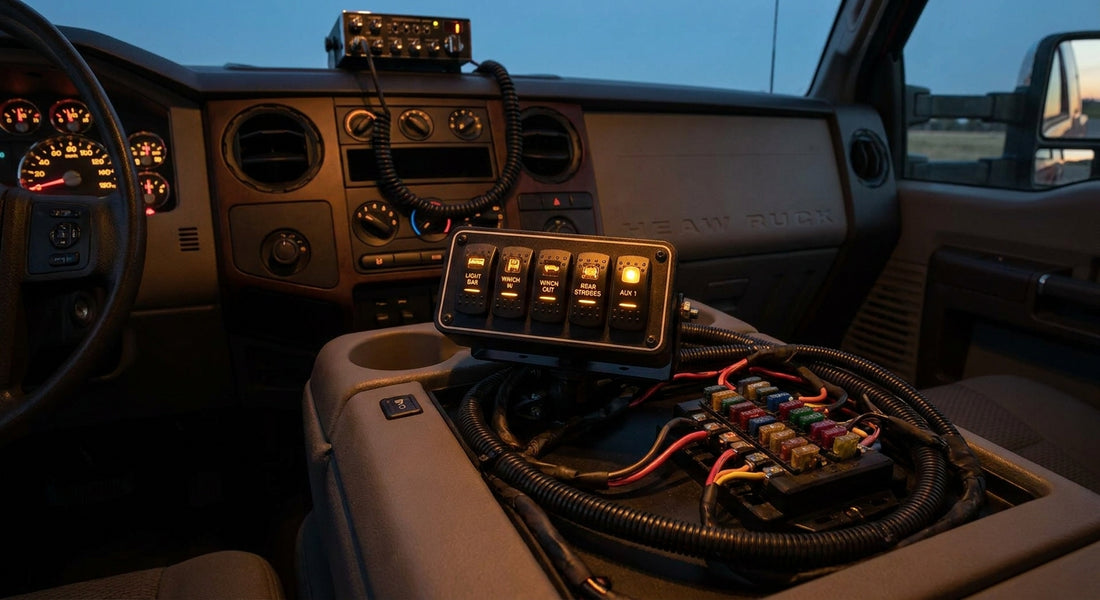

Wiring five or more accessories straight to a truck battery is how you end up with a melted harness on the side of I-80. A dedicated switch panel for tow truck accessories fixes that by centralizing control, adding circuit protection, and giving every strobe, work light, and winch control its own breaker.
TL;DR
A proper switch panel for tow truck accessories in 2026 starts with a 7-switch backlit panel like the 7-switch under dash backlit switch box, a 20-amp or 25-amp circuit breaker on every high-draw circuit, and a battery shut-off switch wired ahead of the panel for fast isolation. Buy the 7-switch panel over a generic 4-switch unit if you're running strobes, work lights, a winch control, and a plow harness on the same rig — you'll run out of switches otherwise. Budget 4-6 hours for a first install, less on repeat jobs once you've got a wiring diagram you trust.
Why this matters
Tow operators load more electrical accessories onto a truck every year — strobes, scene lights, winch solenoids, plow controllers — and factory wiring wasn't built for it. A switch panel gives each accessory its own protected circuit instead of piggybacking off a cigarette lighter fuse rated for 10 amps. That matters because a tripped breaker on the side of a highway at 2 a.m. in 2026 is a lot cheaper than a burned harness or a dead battery on a call.
Most DOT-facing wreckers and light-duty tow trucks run 8 to 12 individual 12-volt accessory circuits once you count lighting, winch control, and cab electronics. Without a panel, that's 8 to 12 points of failure spliced into stock wiring. With one, it's a single, labeled interface you can troubleshoot in minutes instead of hours.
What you'll need
- 7-switch backlit switch panel (rated for progressive or on/off switching)
- Circuit breakers sized to each accessory's draw — 20-amp for lighting circuits, 25-amp for winch control or higher-draw loads
- Battery shut-off switch and mounting plate
- Momentary toggle switch for any accessory needing spring-return control (winch in/out, for example)
- Toggle boot covers for exposed switches in wet or dusty conditions
- 10-12 AWG marine-grade wire, heat-shrink butt connectors, wire loom
- Crimping tool, wire strippers, drill, panel mount screws
- Digital multimeter for load testing
- 4-6 hours of shop time
The steps
1. Map every accessory and its amp draw
List every accessory going on the panel — strobes, work lights, winch solenoid, plow controller — and write down the amp draw for each, usually printed on the accessory or its manual. This tells you whether you need a 7-switch panel or can get by with fewer, and it tells you which breaker size goes on which circuit. Skip this step and you'll either undersize a breaker that trips constantly or oversize one that won't protect the wire.
Expected outcome: a simple table — accessory, amp draw, wire gauge needed. Common mistake: guessing amp draw instead of checking the spec sheet, which leads to breakers that trip under normal load.
2. Choose a panel with headroom, not a perfect fit
Install the 7-switch under dash backlit switch box even if you only have 5 accessories today. Fleets add lighting and winch controls faster than they remove them, and a panel with 2 spare switches saves a second install in 2026 or 2027. The backlit switches also matter for night calls — you're not guessing which toggle is which by feel at 3 a.m.
Expected outcome: panel mounted with 1-2 switches unused for future accessories. Common mistake: buying a 4-switch panel to save money, then jury-rigging a second panel within a year.
3. Wire circuit breakers between battery and panel
Run power from the battery through a fused or breaker-protected feed before it ever reaches the switch panel. Use the 20-amp circuit breaker for lighting circuits and step up to a 25-amp breaker for anything pulling more current, like a winch control relay. This is the single most important safety step in the whole build — it's what keeps a shorted wire from becoming a fire instead of a tripped breaker.
Expected outcome: every hot lead into the panel runs through its own breaker, not a shared fuse. Common mistake: running two or three accessories off one breaker to save wiring time — one dead short then kills every circuit on that feed.
4. Mount the panel where you can reach it without looking
Under-dash mounting works for most light and medium-duty tow trucks because it keeps the panel within reach of the driver's seat without blocking pedals or the steering column. Position it so the most-used switches — strobes and work lights — sit under your dominant hand. Leave 2 inches of clearance behind the panel for wire routing and connector bulk.
Expected outcome: panel operable one-handed while driving, without leaning over. Common mistake: mounting flush against the dash with no clearance, forcing you to disassemble the whole panel later just to add a wire.
5. Run and label every wire before you connect anything
Route wire from the panel to each accessory using loom to protect against chafing on frame rails or door jambs, and label both ends of every wire before final connection. A tow truck panel with 7 unlabeled wires is a nightmare to troubleshoot roadside. Use 10 AWG for winch control and heavier lighting loads, 12 AWG for standard strobe and work light circuits.
Expected outcome: every wire labeled at both ends, matching your Step 1 accessory table. Common mistake: running wire without loom through a door jamb, which chafes through insulation within a season and grounds out the circuit.
6. Add a battery shut-off switch ahead of the panel
Install a battery shut-off switch between the battery terminal and your breaker panel so the entire accessory circuit — and the truck itself — can be killed in one motion during service work or after an accident. Mount it with the matching plate for a clean, accessible install rather than leaving it dangling on bare terminals. This single switch is the difference between a 10-second isolation and pulling cables with tools during an emergency.
Expected outcome: one switch kills all accessory power and starter circuit instantly. Common mistake: skipping the shut-off switch because "it's just an accessory panel" — it's also your fastest fire-prevention tool.
7. Test every circuit under real load
Run each accessory individually and check the breaker doesn't trip, then run 2-3 simultaneously to simulate real-world use — strobes and work lights running together during a night recovery, for example. Use a multimeter to confirm voltage drop stays under 0.5 volts at the accessory end of each run; anything higher means undersized wire or a bad connection.
Expected outcome: all circuits hold steady under combined load with no breaker trips. Common mistake: testing accessories one at a time and never checking combined draw, which is exactly when breakers trip in the field.
8. Seal exposed switches and finish the install
Slide toggle boots over any exposed toggle switches — the momentary toggle for winch control especially — to keep road grime and moisture out of the contacts. Tuck and zip-tie all wire runs, double-check the shut-off switch operation one final time, and log your wiring map somewhere the whole crew can find it.
Expected outcome: clean, sealed panel ready for daily use with a wiring reference on file. Common mistake: leaving the wiring map only in your head — the next tech to touch this rig needs it too.
Troubleshooting
- Breaker trips immediately on startup: you've undersized the breaker for that accessory's inrush current — bump from a 20-amp to a 25-amp breaker on high-draw circuits like winch solenoids.
- Panel lights up but accessory doesn't fire: check the ground connection at the accessory first — most "dead switch" complaints are actually bad grounds, not bad switches.
- Switch panel dims or flickers under load: you've got voltage drop from undersized wire — re-run that circuit in 10 AWG instead of 12 AWG.
- Corrosion on connectors after a season: switch to heat-shrink butt connectors if you used standard crimp connectors — standard ones let moisture in within 12-18 months.
- Multiple circuits trip together: you've likely got a shared ground point that's overloaded — split grounds across two chassis points instead of one.
- Winch control momentary switch sticks: replace the momentary toggle switch rather than fighting a worn spring return — it's a $10-15 part, not worth the diagnostic time.
Tools and resources
- 7-switch under dash backlit switch box for the panel itself
- 20-amp circuit breaker for standard lighting circuits
- Battery shut-off switch for full-system isolation
- Toggle boot covers for weatherproofing exposed switches
- A multimeter and marine-grade butt connectors from your local electrical supplier
What to do next
Once the panel's wired and tested, the next failure point is usually the lighting circuit itself, not the panel. Check the guide on how to wire strobe lights to a vehicle before you connect your amber beacons or scene lights to the new panel — strobe circuits have their own polarity and flash-pattern wiring quirks that a standard accessory circuit doesn't.
FAQ
What is the best switch panel for tow truck accessories in 2026? A 7-switch backlit panel with progressive switching handles the typical tow truck load list — strobes, work lights, winch control, and plow accessories — with room to spare. Fewer switches means a second install within a year as accessories get added.
How many amps do tow truck accessory circuits need? Most lighting circuits run fine on a 20-amp breaker, while winch control and higher-draw accessories need a 25-amp breaker. Check the amp draw printed on each accessory before wiring — don't guess.
Can I add a switch panel without cutting into factory wiring? Yes — tap power at the battery or a dedicated fused junction rather than splicing into factory harnesses, which keeps warranty and diagnostics clean. Route new wire alongside factory looms instead of through them.
What size wire do I need for a 7-switch panel? 10 AWG for winch control and heavy lighting loads, 12 AWG for standard strobe and work light circuits. Undersized wire is the top cause of voltage drop and dim accessories.
Is a battery shut-off switch required for tow trucks? It's not universally mandated, but it's standard practice on wreckers doing recovery and roadside work in 2026 because it lets you isolate power in seconds during service or after a collision.
How do I stop a circuit breaker from tripping under load? Step up to the next breaker size only after confirming the accessory's actual draw with a multimeter — a 20-amp breaker tripping under a 22-amp winch solenoid load needs a 25-amp breaker, not a workaround.
Where should you mount a switch panel in a tow truck cab? Under the dash, within reach of your dominant hand and clear of pedals and the steering column, with 2 inches of clearance behind for wire routing.
How much does a tow truck switch panel setup cost? Costs vary by how many circuits and breakers you're running plus wire gauge — check current pricing on individual components rather than assuming a flat number, since a 7-switch build costs more than a 4-switch build in parts alone.
One last thing
The most skipped step in a DIY switch panel for tow truck accessories install isn't the wiring — it's labeling. Crews that label both ends of every wire in 2026 cut roadside troubleshooting time from an hour to under 10 minutes, because the next tech who opens that panel isn't starting from zero.
