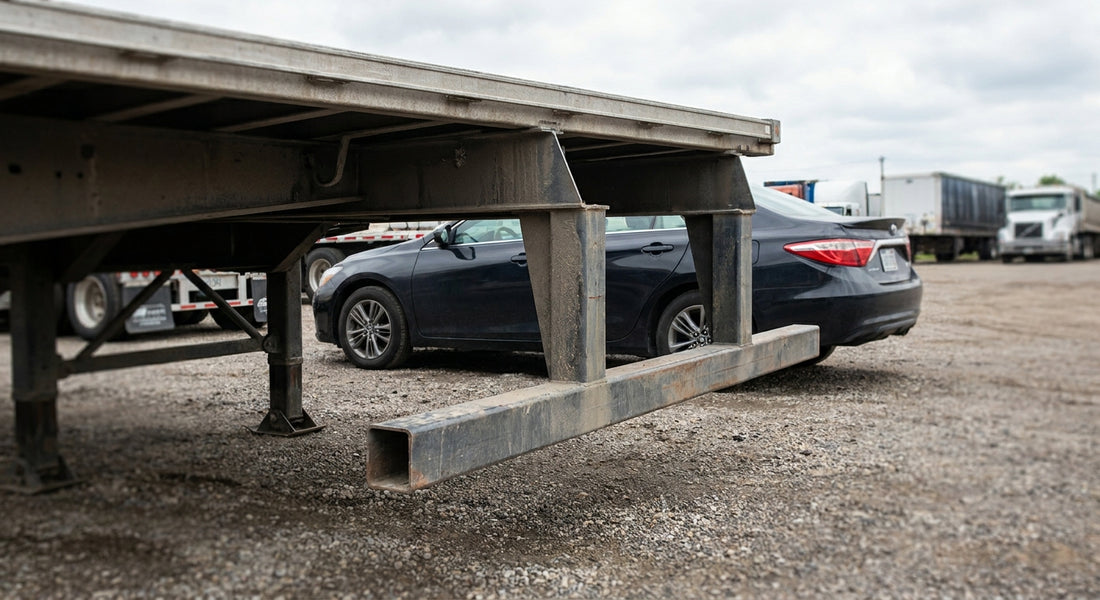

Picture a sedan closing fast on the back of a loaded flatbed at 65 mph outside Detroit — without a rear underride guard bridging the gap between the deck and the road, that car goes under the trailer instead of into it. This guide breaks down what a compliant rear underride guard needs in 2026, which guard types hold up on a working flatbed, and what to skip before your next roadside inspection.
- Rear underride guards for flatbed trailers must meet FMVSS 223/224 and sit within 22 inches of the ground, or they fail DOT inspection outright.
- Fixed steel guards rated to full trailer width are the safe default for 2026 fleets hauling steel, lumber, or equipment: Buy.
- Folding or retractable guards suit low-boy decks with tight departure angles but need monthly hinge checks: Consider.
- Used take-off guards with no impact history or certification tag are never worth the discount: Skip.
- Pair any guard with DOT reflective marking for full rear-end conspicuity compliance.
Why This Matters
Rear underride guards exist because flatbed trailers sit higher off the ground than a car's bumper line, and that gap turns a survivable rear-end collision into a fatal one. Federal Motor Vehicle Safety Standards 223 and 224 set the strength and installation rules for these guards, and 49 CFR 393.86 caps ground clearance at 22 inches on an unladen trailer. Any flatbed with a GVWR over 10,000 pounds falls under this rule, which covers nearly every car hauler, equipment trailer, and heavy-haul flatbed running commercial routes in 2026.
A guard that doesn't meet spec doesn't just risk a citation — it's the difference in a real rear-end crash. Pairing a compliant guard with DOT reflective marking on the rear frame gives an approaching driver both a physical barrier and enough warning distance to brake before contact.
Who Needs a Compliant Rear Underride Guard
This is for flatbed trailer owners, car haulers, equipment transporters, and fleet managers running trailers with a GVWR above 10,000 pounds on public roads. If your flatbed hauls steel coil, lumber, construction equipment, or vehicles and it's registered for highway use, the guard isn't optional equipment — it's a line item checked at every roadside inspection in 2026. TruckNTow's customer base includes fleet managers spec'ing new builds and owner-operators replacing a rusted or bent factory guard after years on the road, and both face the same federal requirement.
What to Look for in Rear Underride Guards for Flatbed Trailers
TruckNTow's take on rear underride guard shopping starts with these five measurements, not the price tag.
Ground clearance under 22 inches
The horizontal member of the guard has to sit no more than 22 inches above the ground when the trailer is empty, per 49 CFR 393.86. Guards mounted too high leave the exact gap the regulation exists to close, and it's one of the first things an inspector checks with a tape measure.
Guard width matching the trailer
The guard needs to extend to within 4 inches of the trailer's overall width on each side, per FMVSS 224 installation rules. A narrow guard bolted on to save weight or clear tight departure angles fails inspection even when the ground clearance number is correct.
Strength rating certified to FMVSS 223
FMVSS 223 sets the crash-test strength standard every certified guard has to meet, and NHTSA last updated the standard in 1998 to require higher impact energy absorption. Buy guards with a manufacturer certification tag welded or riveted to the structure — that tag is what an inspector looks for first.
Corrosion resistance for road salt and de-icer exposure
A guard that rusts through at the mounting brackets loses its rated strength long before it looks bad enough to replace. Powder-coated or galvanized steel holds up through a winter of road salt exposure far longer than raw mild steel, which matters for any flatbed running northern routes in 2026.
Departure angle and deck height compatibility
Low-boy and drop-deck flatbeds need a guard that doesn't drag on ramps or rail crossings, which usually means a folding or removable design instead of a fixed bar. Standard-height flatbeds can run a fixed guard without clearance problems.
The Guard Types Worth Running in 2026
The fixed steel guard — the safe default
A fixed, full-width steel guard bolted or welded to the rear frame is the standard spec on most flatbed builds after 1998, and it meets FMVSS 223 strength requirements without moving parts to maintain. Ground clearance sits at a fixed 18 to 22 inches depending on axle configuration. Buy this for any standard-deck flatbed running mixed freight — it's the lowest-maintenance option and the one every inspector recognizes on sight.
The folding guard — the wildcard
A hinged, spring-loaded guard folds up out of the way for loading ramps or rail crossings, then locks into compliant position for highway travel. It solves the departure-angle problem on low-boy decks but adds a hinge and locking pin that need a monthly check. Consider this if your flatbed regularly loads at grade crossings or steep ramps and a fixed bar keeps dragging.
The OEM replacement guard — the reliable swap
Ordering the exact guard the trailer manufacturer speced at the factory guarantees the mounting holes line up and the certification tag matches the build sheet. It takes more time to source than a universal aftermarket bar but removes any guesswork about fit. Buy this when you're replacing a factory guard that's been in a collision or rusted through.
The aftermarket bar with integrated anchor points
Some aftermarket guards weld in extra D-ring tie-down anchors along the crossmember, giving you rear tie-off points for chains or straps without drilling the deck. It adds function to a mandatory part, though the extra weld points need the same corrosion checks as the guard itself. Consider this for car haulers or equipment trailers that need extra rear securement points anyway.
The used take-off guard — skip it
A pulled guard from a salvage trailer looks like a bolt-on bargain, but there's no way to confirm impact history, hidden fatigue cracks, or whether the certification tag matches the actual structure under it. Skip this option entirely — the guard is the one part on a flatbed where used equipment isn't worth the discount.
What to Avoid
- Guards without a visible FMVSS 223 certification tag — no tag means no proof it meets federal strength standards, an automatic flag at inspection.
- Guards mounted with the horizontal member above 22 inches to clear a lift gate or ramp — raising the guard to solve a clearance problem defeats the reason it exists.
- Bent or previously-welded guards presented as structurally sound — a guard that's already absorbed one impact doesn't recertify itself because the bend got hammered out.
Compatibility and Fit on the Trailer Frame
Bolt patterns and crossmember spacing vary between trailer manufacturers, so a guard built for one flatbed brand rarely bolts straight onto another without drilling new holes. Measure the frame width, the crossmember depth, and the distance from the rearmost axle to the frame end before ordering anything, and confirm the trailer's GVWR against the guard's rated capacity.
On loaded jobs, pair the guard setup with wheel chocks rated for flatbed trailers at the dock — a compliant rear guard doesn't do anything for a trailer that rolls while it's parked. TruckNTow carries flatbed-rated wheel chocks and anchor hardware for exactly this kind of rear-end securement work.
Maintenance and Care
Check the guard's mounting bolts for torque and the crossmember for rust bubbling at every pre-trip inspection, since road vibration loosens hardware faster on a guard than on most other trailer components. Repaint or re-coat any bare steel spot within a season of first appearing — a small rust patch in 2026 is a compromised weld point by 2027. Replace any guard that's taken a hit in a dock collision or low-speed backing incident, even if it still measures within spec, because impact fatigue in steel doesn't show up on a tape measure.
Rear Underride Guard Comparison for 2026
| Guard Type | Ground Clearance | Maintenance Load | Best For | Verdict |
|---|---|---|---|---|
| Fixed steel guard | 18-22 in, fixed | Low | Standard-deck flatbeds | Buy |
| Folding/retractable guard | Compliant when locked down | Medium (hinge checks) | Low-boy decks, ramp loading | Consider |
| OEM replacement guard | Matches factory spec | Low | Collision or rust replacement | Buy |
| Aftermarket bar with D-rings | 18-22 in, fixed | Medium (extra welds) | Car haulers needing rear anchors | Consider |
| Used take-off guard | Unknown/unverifiable | High (unknown history) | Nobody | Skip |
FAQ
What is a rear underride guard on a flatbed trailer?
A rear underride guard is a steel bar mounted at the back of a flatbed trailer that stops a passenger vehicle from sliding underneath in a rear-end collision. It's mandatory on trailers with a GVWR over 10,000 pounds under FMVSS 223 and 224.
Are rear underride guards required by law?
Yes, federal regulation 49 CFR 393.86 requires them on trailers and semitrailers with a GVWR over 10,000 pounds. Inspectors check ground clearance, width, and the certification tag during roadside stops.
How much ground clearance can a rear underride guard have?
No more than 22 inches from the ground to the bottom of the horizontal guard member when the trailer is empty. Guards mounted higher than that fail inspection regardless of how strong the steel is.
Do flatbed trailers need underride guards if they haul open loads?
Yes, the requirement is based on GVWR, not cargo type or whether the load is covered. Any flatbed over 10,000 pounds GVWR needs a compliant guard whether it's hauling steel, lumber, or vehicles.
How often should a rear underride guard be inspected?
Check it at every pre-trip inspection for loose bolts, rust, and physical damage. A full measurement check against the 22-inch clearance and width specs should happen at least once a quarter.
Can a damaged rear underride guard fail a DOT inspection?
Yes, a bent, cracked, or missing certification tag on the guard is grounds for an out-of-service order at a roadside inspection. Damage that changes ground clearance or width is treated the same as a missing guard.
What's the difference between a fixed and folding underride guard?
A fixed guard is welded or bolted in one position and needs no moving parts, while a folding guard hinges up for ramp or rail clearance and locks down for highway travel. Fixed guards need less maintenance; folding guards solve departure-angle problems on low-boy decks.
How much weight can a rear underride guard withstand?
FMVSS 223 sets a federal minimum impact-energy absorption standard that every certified guard has to pass in crash testing. Exact capacity varies by manufacturer, which is why the certification tag matters more than any single number.
One Last Thing
The guard measurement most fleets get wrong isn't clearance — it's width. A guard sitting a full 22 inches off the ground still fails inspection if it stops six inches short of the trailer's outer edge, and that's an easier fix to miss than a hanging bracket. Measure width first, clearance second, and the rest of the FMVSS 223/224 checklist falls in line.
