Reflective conspicuity tape isn't optional on most trailers over 10,001 lbs GVWR — FMCSA rule 393.11 requires it, and a roadside inspector who can't see your rig at night writes a citation, not a warning. This guide walks through prepping the surface, cutting the strips, and getting the DOT reflective tape pattern right the first time.
TL;DR: Applying DOT reflective tape on a trailer means cleaning the mounting surface to bare metal or gel coat, alternating 12-inch red and white segments across at least half the length of each side plus the rear, and pressing the strip down with a hard roller so it bonds for the long haul. Skip the primer step and the tape peels within months — the Vulcan oversize load sign setups solve visibility differently but don't replace tape where FMCSA requires it. Budget an hour per side in 2026 if you're doing a 48-foot trailer solo, less with a second set of hands.
Why this matters
Conspicuity tape isn't decoration — it's the difference between a car seeing your trailer at 2 a.m. on an unlit rural highway and a car not seeing it until the last second. FMCSA has required retroreflective sheeting on trailers since 1993, and enforcement hasn't loosened up going into 2026. A trailer with faded, cracked, or missing tape gets flagged during a Level 1 or Level 2 inspection just as fast as a bad brake chamber.
Most fleets treat tape replacement as an afterthought until an inspector points a flashlight at a bald spot. Doing the job right the first time — proper surface prep, correct segment spacing, correct coverage percentage — means you're not repeating this every six months. Check DOT compliance requirements for load securement too, since tape and binder inspections often happen in the same stop; the best load binders for DOT compliance breakdown covers what else inspectors check on the same walkaround.
What you'll need
- DOT-compliant reflective sheeting (alternating red/white, minimum 2 inches wide)
- Isopropyl alcohol or dedicated adhesion promoter
- A hard rubber roller or squeegee — not a rag, not your thumb
- Heat gun or propane torch (low setting) for cold-weather installs
- Tape measure and chalk line or grease pencil
- Utility knife with fresh blades
- Shop rags, degreaser, and a wire brush for rust spots
- A visibility reference point — the Vulcan oversize load sign for trucks and trailers uses similar reflective principles if you're comparing coverage on a wide-load rig
If your trailer already runs a safety flag setup, the Vulcan safety flag with wire loop is a separate daytime visibility layer — it doesn't substitute for reflective tape at night, but the two work together on a fully compliant trailer.
The steps
1. Measure and mark your coverage zones
FMCSA requires reflective sheeting across at least 50% of the trailer's overall length on each side, plus a strip across the rear. Measure the trailer length, divide by half, and chalk-mark where your segments will start and stop before you cut a single piece of tape. Getting this wrong means redoing the whole side — measure twice, mark once.
2. Strip and degrease the mounting surface
Wipe down every inch of the mounting area with isopropyl alcohol or a dedicated adhesive promoter, then hit any rust spots with a wire brush. Reflective tape adhesive bonds to clean metal or gel coat, not to road grime, wax, or oxidized paint. Skipping this step is the single biggest reason tape peels within the first 90 days — expect a bond failure if you rush it.
3. Cut your segments to length
Standard DOT pattern alternates 12-inch red and 12-inch white segments, though 18-inch strips are also common on longer trailers. Cut your strips a hair long, not short — trimming excess after application is easier than adding a patch to a gap. Keep the blade fresh; a dull utility knife tears the sheeting edge and invites peeling.

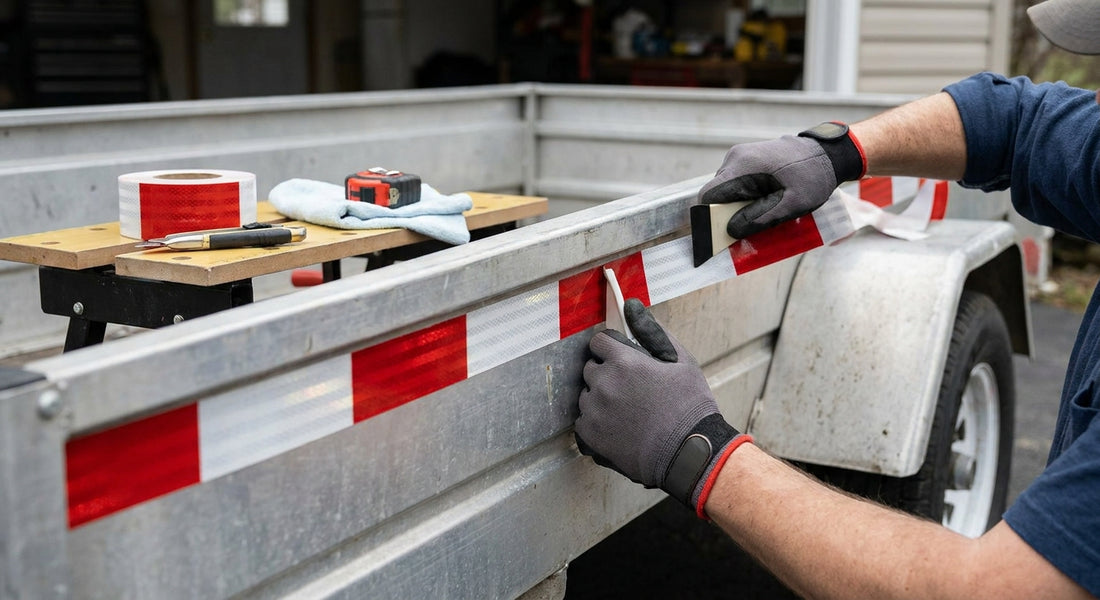

4. Apply from one end, working in a straight line
Peel back 2-3 inches of backing, align the strip against your chalk line, and press down as you slowly peel the rest of the backing away. Work in one continuous motion rather than stopping and starting — stop-start application creates air bubbles that trap moisture and lift edges over time. This step is where a second set of hands speeds things up dramatically.
5. Roll every inch with firm pressure
Once the strip is down, go over the entire length with a hard rubber roller, pushing air and bubbles out toward the edges. In cold weather (below 50°F), a low-heat gun pass ahead of the roller softens the adhesive and improves the bond — this single step is what separates tape that lasts 5-7 years from tape that's peeling by spring.
6. Cover the rear and lower rear corners
The rear of the trailer needs its own reflective strip, plus reflective sheeting on the lower rear corners per FMCSA spec. This is the zone most inspectors check first because it's the most visible to a following vehicle — don't treat it as an afterthought after doing the long sides.
7. Inspect the full pattern before you call it done
Step back 20-30 feet and check the alternating pattern in daylight, then again at night with headlights if possible. Gaps, misaligned segments, or missing rear coverage are exactly what a roadside inspection catches — catching them yourself in the yard costs nothing; catching them on I-40 costs a fine.
Troubleshooting
- Tape won't stick to the surface — the surface still has wax, grease, or oxidation on it. Re-clean with alcohol and let it fully dry before retrying.
- Bubbles forming under the tape — you applied too fast or too slow inconsistently. Reheat with a low-setting heat gun and re-roll from the center outward.
- Tape edges lifting after a few weeks — cold application without a heat-assist pass. In temperatures under 50°F, always warm the adhesive before rolling.
- Colors fading faster than expected — cheaper non-DOT-certified sheeting fades within a year or two; certified reflective sheeting typically holds up 5-7 years in 2026 conditions with normal road exposure.
- Inspector flags coverage as insufficient — you likely fell short of the 50% length requirement. Remeasure and add segments rather than arguing the point roadside.
- Tape looks fine in daylight but doesn't reflect at night — this usually means non-retroreflective tape was used by mistake. Confirm the sheeting is rated retroreflective, not just colored vinyl.
Tools and resources
- Reflective sheeting rated for DOT conspicuity compliance (check the roll's certification marking before buying)
- A hard roller — a squeegee alone won't seat the adhesive fully
- The Vulcan oversize load sign referenced above if your load also needs wide/oversize signage alongside standard conspicuity tape
- A second inspection pass at night with headlights before the trailer goes back on the road
If your trailer's lighting is also due for attention, the how to replace trailer tail lights step by step guide covers the other half of nighttime visibility compliance — tape handles passive reflection, tail lights handle active signaling, and inspectors check both.
What to do next
Once the tape's applied and inspected, walk the rest of your trailer's visibility package — lights, reflectors, and signage all get checked together on a roadside stop. The best stop turn tail lights for trailers guide is the logical next stop if any bulbs are dim, cracked, or inconsistent in color.
FAQ
What's the DOT requirement for reflective tape on a trailer? FMCSA rule 393.11 requires retroreflective sheeting covering at least 50% of the trailer's length on each side plus the rear, in alternating red and white segments, for trailers over 10,001 lbs GVWR.
How much reflective tape does a 48-foot trailer need? At minimum, coverage across half the trailer's length per side — roughly 24 feet of alternating segments per side on a 48-footer, plus full rear coverage.
Is red and white the only approved tape color pattern? Red and white alternating segments are the standard DOT pattern; some specialty applications use different combinations, but red/white is what most roadside inspectors expect to see.
How long does DOT reflective tape last? Certified reflective sheeting typically holds up 5-7 years under normal road exposure; cheaper non-certified tape often fades or peels within a year or two.
Can I apply reflective tape in cold weather? Yes, but use a low-heat gun pass before rolling — cold adhesive doesn't bond fully and the tape will lift at the edges within weeks.
Does reflective tape replace the need for trailer lights? No. Tape provides passive reflection for headlights; DOT-compliant tail, stop, and turn lights are a separate active requirement checked independently during inspections.
What happens if my trailer fails a reflective tape inspection? Expect an out-of-service order or citation depending on the state and severity — most inspectors give a short window to fix minor gaps but won't let a trailer with no rear coverage back on the highway.
Do I need reflective tape on a trailer under 10,001 lbs GVWR? FMCSA's mandatory rule applies above that weight threshold, though many operators add tape to lighter trailers anyway for nighttime visibility on unlit roads.
One last thing
The segment most people skip is the lower rear corners — it's a small strip, it's easy to forget, and it's one of the first things a Level 1 inspector checks because it's what a following driver sees first at a stoplight. Get that piece right in 2026 and the rest of the pattern is just measuring and rolling.
