Imagine loading a cargo van full of tools and inventory for a job three states away, only to watch a toolbox slide into the bulkhead the first time you hit the brakes hard — that's what happens when a van has no anchor points built into the floor. E-track rail solves that problem permanently, and installing it correctly the first time keeps you from redoing the job after a load shift tears out a screw.
- Bolt e-track through the subfloor with backing plates, not sheet-metal screws — screws alone strip out under a 3,300 lb load.
- Space fasteners every 16-20 inches along horizontal track to match most van floor rib spacing in 2026 model vans.
- A properly installed section of e-track paired with a rated logistic strap outperforms floor D-rings for mixed cargo.
- Vertical wall track needs to hit the van's structural ribs, not just the interior skin panel.
Why this matters
A cargo van without e-track relies on whatever anchor points the manufacturer bolted in, and those are almost always too few and too far apart for real work. E-track installed correctly gives you adjustable anchor points every few inches along the rail, so a 20-foot ladder and a pallet of boxes can both get secured on the same run without hunting for a strap point. Get the install wrong — thin screws, no backing plate, track that doesn't line up with a stud — and the rail becomes a liability instead of a securement system.
What you'll need
- Cordless impact driver with Phillips and Torx bits
- Tape measure and a chalk line or laser level
- Center punch and a drill with 1/4-inch and 5/16-inch bits
- Grade 5 bolts, washers, and lock nuts (length matched to your floor thickness plus backing plate)
- 1/8-inch steel backing plates or a length of angle iron
- E-track sections — horizontal for floor runs, vertical for wall runs
- A stud finder if you're mounting into a finished cargo van interior
- Safety glasses and gloves
Before you buy track, check what you'll actually tie down. If your loads run heavy — engine blocks, compressors, generator sets — you want the rail rated to carry logistic straps and tie-downs at their full safe working load, not the lightest track on the shelf. A lot of installers pair the new rail with an aluminum tool box bolted to one end of the run, which gives you a fixed anchor point plus lockable storage in one install.
The steps
1. Map the floor before you drill
Walk the van floor and mark where the structural ribs run underneath the plywood or diamond-plate liner — most cargo vans built through 2026 space these ribs 16 to 20 inches apart. Snap a chalk line down each intended track run so your holes land on solid steel, not just floor skin. Skipping this step is the single biggest reason e-track pulls loose within the first year.
2. Dry-fit the track sections
Lay the horizontal track sections in place without fastening anything and check that the slot pattern lines up with your marked rib locations. Standard e-track sections run in 8 or 10-foot lengths, and butting two sections end to end without a gap keeps the strap fittings sliding freely across the full run.
3. Drill and back the mounting holes
Drill through the track, the floor skin, and the structural rib together so every hole lines up in one pass. On thin floor sections, add a steel backing plate or angle iron underneath so the bolt clamps steel to steel instead of crushing thin sheet metal — this is what lets the track hold its full rated capacity instead of tearing out under a hard stop.
4. Bolt, don't just screw, the track down
Run a Grade 5 bolt through each hole with a washer on both sides and torque the lock nut down until the track sits flush with no rocking. Sheet-metal screws work for light-duty trim but they strip out fast under cyclic load from a ratchet strap, which is exactly the failure mode you're trying to eliminate.
5. Install vertical wall track for tall or narrow loads

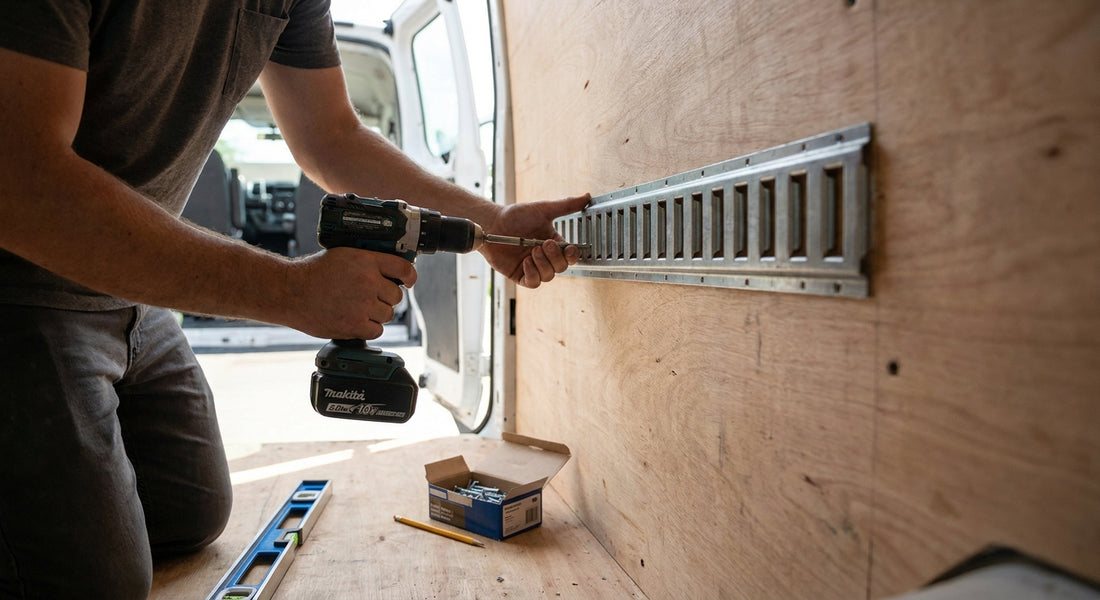

If your job involves upright cargo — appliance dollies, tall crates, motorcycle chocks — add a run of vertical e-track on the wall studs at a height that lets a logistic strap for e-track reach both the floor rail and the wall rail without excessive slack. Vertical track needs to hit the same structural ribs as the walls, confirmed with a stud finder before you drill.
6. Load test before you trust it
Hook a rated e-track strap into the new rail and pull it tight against a known weight — a loaded pallet or a stack of totes works fine. Watch the mounting points for any flex or movement; a properly bolted section shouldn't shift at all under normal ratchet tension.
7. Cap and seal exposed hardware
Run a bead of seam sealer or silicone around any bolt heads that penetrate the floor from underneath, especially on vans that see winter road salt. Corrosion around an unsealed bolt is the second most common cause of e-track failure after under-torqued fasteners.
Safety
A torqued bolt that isn't backed by steel is worse than no track at all, because it gives a driver false confidence in an anchor point that will shear under a sudden stop. Never mount e-track to a floor liner alone — every hole needs to reach the structural rib or a backing plate underneath. Check the weight rating stamped or listed on the track itself before you load it past what a single strap or tie-down is rated for; mixing a 1,333 lb strap with a 3,300 lb rated track section doesn't upgrade the strap's capacity.
Maintenance and care
Inspect every e-track run twice a year for loosening bolts, cracked welds at the section joints, and rust bleeding from underneath the mounting holes. A quarter-turn of play in a bolted section means it's time to pull the hardware, clean the hole, and re-torque with fresh lock nuts rather than just cranking down on corroded threads. Vans running through winter road salt should get the underside bolts resealed annually, since that's where corrosion starts eating the anchor from below where you can't see it.
Troubleshooting
- Track section rocks under load — the bolt is landing on floor skin instead of the structural rib; pull it and add a backing plate.
- E-fitting won't snap into the slot — debris or rust has built up in the track channel; clean it out with a wire brush before forcing a fitting.
- Strap slides down the track under tension — the section has a manufacturing gap or a worn slot; swap that section rather than compensating with extra strap tension.
- Bolt heads rusting through the floor liner — moisture is getting trapped under an unsealed hole; strip, reseal with silicone, and repaint exposed steel.
- Vertical track pulling away from the wall — the mounting missed the stud; relocate holes after confirming rib position with a stud finder.
- Track sections misaligned at the joint — dry-fit wasn't checked before drilling; redrill rather than forcing a bent section into place.
Tools and resources
A cordless impact driver, a stud finder, and a torque wrench cover the mechanical side of this job, but the securement gear is what makes the rail useful once it's in. Keep a matched set of logistic straps rated for your typical load range on hand, and store loose hardware and tools in a tool box built for cargo van conversions so nothing rattles loose during transit and damages the new rail.
What to do next
Once the rail is bolted down and load tested, the next call is matching strap capacity to what you actually haul week to week — a fleet running mixed pallets and equipment needs a different strap mix than one hauling boxed inventory. Since 1959, TruckNTow has supplied trucking professionals with cargo control hardware built to carry rated loads, not just look the part on a shelf, and every order ships with free ground shipping.
FAQ
How do you install e-track rails in a cargo van?
Mark structural rib locations under the floor, drill through both the track and the rib together, bolt with backing plates, and torque to a flush fit. Skipping the backing plate is the top reason e-track pulls loose within a year.
Can you screw e-track directly into a van floor?
Sheet-metal screws hold trim but strip out fast under repeated ratchet strap tension. Bolts with backing plates or a structural rib underneath carry the rated load reliably in 2026 model vans.
What weight can e-track hold in a cargo van?
Rating depends on the track and the strap paired with it — logistic straps commonly run 833 to 1,333 lb safe working load, while heavier car tie-downs reach 3,300 lb. The track mounting has to match or exceed whatever strap you're using.
Do you need backing plates for e-track installation?
Yes, unless the bolt lands directly on a structural floor rib. A backing plate spreads the clamping force across steel instead of thin floor skin, which keeps the bolt from tearing out under load.
How far apart should e-track mounting bolts be?
Space bolts every 16 to 20 inches to match typical van floor rib spacing. Wider spacing leaves sections free to flex and loosen over time.
Is vertical e-track worth installing on van walls?
Yes for tall or upright cargo like appliance dollies or motorcycle chocks. Vertical track needs to hit wall studs directly, confirmed with a stud finder before drilling.
How often should e-track be inspected after installation?
Check bolts and welds twice a year, more often in winter road-salt conditions. Any bolt with a quarter-turn of play should be pulled, cleaned, and re-torqued.
What's the difference between horizontal and vertical e-track?
Horizontal track mounts to the floor for standard load securement, while vertical track mounts to walls for tall or upright cargo. Most cargo van builds in 2026 use both in combination.
One last thing
The backing plate step gets skipped more than any other part of this job because it adds twenty minutes to the install, and it's also the single point of failure behind almost every e-track callback. Bolt through steel, torque it once correctly, and the rail will outlast the van.
