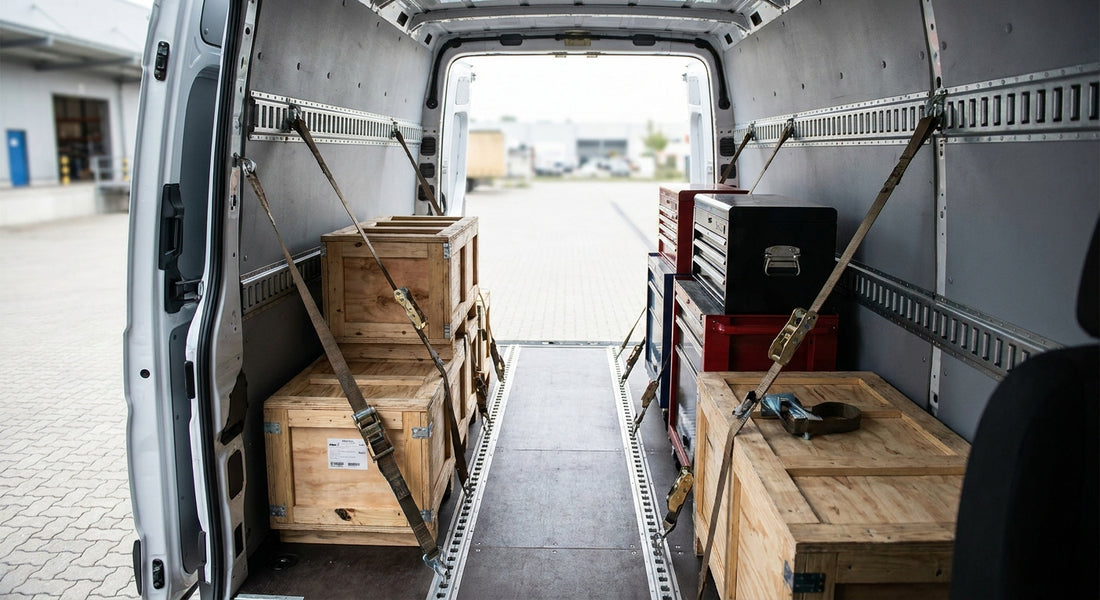

Imagine backing a cargo van into a dock at 5 a.m. with a half-loaded pallet of tool cases sliding sideways because the last guy zip-tied everything to a shelf bracket — that's the moment most fleet managers finally commit to installing an e-track rail system. An e-track rail system turns bare van walls and floors into adjustable anchor points, letting straps, load bars, and E-fittings snap in wherever the cargo actually sits instead of wherever a factory D-ring happened to be welded.
- An e-track rail system rated at 1,333 lbs per strap handles most parcel and tool-case loads in a cargo van — Buy for daily-use vans.
- Horizontal track suits sidewalls; vertical track suits floor runs where load position shifts stop-to-stop.
- VULCAN E-track straps with spring fittings snap in without tools, cutting load time versus bolted D-rings.
- Skip aluminum big-box track under 0.08-inch wall thickness — it deforms under repeated fitting insertion by mid-2026 route mileage.
- Match strap safe working load to cargo weight, not track length, when building a van-specific e-track rail system.
Why This Matters When You're Loading a Cargo Van
A cargo van doesn't have the deck real estate of a flatbed, so every inch of wall and floor space has to double as a tie-down point without adding weight the vehicle wasn't built to carry. TruckNTow has stocked cargo control hardware for trucking and towing operations since the company's founding in Detroit in 1959, and the shift toward e-track systems in delivery and service vans has been steady through 2026 as parcel volume keeps climbing. Loose cargo shifting mid-route isn't just a damage claim — it's a DOT violation if a strap fails and cargo enters a lane, and it's a liability claim if a load box hits a driver during a hard stop.
An e-track rail system solves this with a continuous slotted rail — horizontal or vertical — that accepts spring-loaded or rotating E-fittings anywhere along its length. Instead of drilling new D-rings every time a load profile changes, the crew adjusts a strap position in under 30 seconds.
Who Needs an E-Track Rail System for Cargo Van Load Securement
This guide is for fleet managers and owner-operators running enclosed cargo vans — parcel delivery, HVAC and electrical service trucks, mobile mechanics, and moving crews — who load and unload multiple times a day and need anchor points that move with the cargo instead of forcing the cargo to move to fixed rings. If your van sits loaded with the same pallet for a single long haul, a fixed axle strap kit does the job cheaper; e-track earns its cost when load configuration changes daily.
What to Look For in an E-Track Rail System
Horizontal vs. Vertical Track Orientation
Horizontal track mounted at bumper height and mid-wall height secures tall cargo like ladders or cases against sidewalls, while vertical track run floor-to-ceiling handles loads that need tie-down at varying heights along a single run. Most service vans run both: horizontal along the walls for shelving loads, vertical near the doors for anything staged for quick unload.
Fitting Type — Spring vs. Rotating
Spring-loaded E-fittings snap into the track's slots and lock under tension, which is what most VULCAN E-track straps use, while rotating fittings twist 90 degrees to engage and disengage. Spring fittings are faster for single-driver loading; rotating fittings hold better under lateral vibration on rough routes, which matters if half your stops are unpaved lots.
Safe Working Load Rating on the Strap, Not Just the Rail
The rail itself is rated for a distributed load, but the strap doing the actual tie-down carries its own SWL — 833 lbs on a cam buckle logistic strap, 1,333 lbs on a ratchet-style E-track strap. Buying premium track and pairing it with a bargain strap under-rated for the cargo defeats the entire system.
Mounting Pattern and Deck Thickness
E-track fastens through pre-drilled holes into the van's structural wall or floor member, and thin aftermarket panel skins without backing will pull loose under repeated load cycling. Confirm the mounting screws reach a structural rib, not just the interior plywood liner, before drilling.
Corrosion Resistance for Daily Exposure
Vans running coastal routes or winter salt routes need zinc-plated or stainless track hardware, because rust in the slot channel jams E-fitting insertion within a season. A stuck fitting during a loading dock rush costs more time than the upgrade would have.
Top E-Track Accessories for Cargo Van Securement
The daily-use pick — a 12-foot E-track ratchet logistic strap rated at 1,333 lbs handles tool cases, appliance dollies, and stacked totes without overbuying capacity. Buy for any van doing multiple stops a day.
The lightweight-load pick — a cam buckle E-track strap rated at 833 lbs is faster to tension by hand and better suited to soft goods or boxed parcels that don't need ratchet compression. Buy for parcel and courier vans.
The vehicle-frame pick — an E-track frame-hook tie-down pair rated at 3,300 lbs is built for securing a motorcycle, generator skid, or small equipment frame directly to van-floor track rather than a cargo strap alone. Consider it if your van doubles as an equipment hauler on top of parcel runs.
Storage matters as much as strapping: a well-organized aluminum tool box mounted forward of the e-track run keeps loose tools from becoming the projectile you were trying to prevent, and pairs naturally with the load beam approach covered in the load beams for cargo vans guide for splitting a van interior into secured zones.
Compatibility and Fit: Matching Track to Your Van's Floor
Most enclosed cargo vans come with a plywood or composite floor liner over sheet metal, and E-track designed for that surface uses shorter mounting screws than track bolted directly into a bare steel floor. Measure slot spacing before ordering fittings — standard E-track uses 1-inch slot centers, but some import van conversions use a 2-inch pitch that rejects standard spring fittings entirely. Vertical wall track needs stud-spacing verification too, since most van wall studs run 16 inches on center and track length should span at least two studs for a load-bearing mount.
Safety Considerations for E-Track Load Securement
An e-track rail system only performs to its rated capacity when the fitting fully seats and locks — a half-engaged spring fitting can walk loose under highway vibration and release the strap mid-route. Inspect fittings visually before every load, not just at pre-trip, because a bent fitting tab looks engaged but isn't carrying rated load. Federal Motor Carrier Safety Administration cargo securement rules require aggregate working load limit at least half the cargo weight, so a 1,000-lb load needs at minimum 500 lbs of combined strap SWL — two 833-lb cam buckle straps clear that with margin, one doesn't if the strap is under-tensioned.
Maintenance and Care to Keep Your Rail System Working
Slot channels collect road grit and cargo debris that jam fitting insertion over a season of daily use, so a quick brush-out of the track every few weeks keeps fittings snapping in cleanly instead of forcing. Check mounting screws for backing-out at 90-day intervals — vibration loosens fasteners faster in vans running gravel or construction-site routes than on paved delivery circuits. Replace any strap showing webbing fray, cut fibers, or a ratchet mechanism that no longer holds tension under load; a strap rated at 1,333 lbs new can lose 30% of that rating with visible wear.
What to Avoid When Buying E-Track for Cargo Vans
- Big-box aluminum track under 0.08-inch wall thickness looks identical to commercial-grade rail but deforms after repeated fitting insertion within a single year of daily route use.
- Mismatched fitting styles — buying spring-fitting straps for rotating-fitting track (or vice versa) means straps that look compatible but won't lock, a mistake that only shows up mid-load when it's too late to swap.
- Track without a published SWL rating — if the listing doesn't state a per-foot or per-fitting load rating, assume it's built for light interior use only, not daily commercial cargo.
E-Track System Comparison at a Glance
| Component | SWL Rating | Best For | Verdict |
|---|---|---|---|
| E-track cam buckle strap, 833 lb | 833 lbs | Light parcels, soft goods | Buy |
| E-track ratchet strap, 1,333 lb | 1,333 lbs | Tool cases, dollies, daily loads | Buy |
| E-track frame-hook tie-down, 3,300 lb | 3,300 lbs | Equipment frames, motorcycles | Consider |
| Big-box track, no SWL published | Unrated | Occasional light interior use only | Skip |
FAQ
What's the best e-track rail system for a cargo van?
For daily-use delivery and service vans, a horizontal E-track run paired with 1,333-lb ratchet E-track straps handles the widest range of loads in 2026 fleet use. Equipment haulers should add a 3,300-lb frame-hook tie-down for heavier gear.
Is horizontal or vertical E-track better for a cargo van?
Horizontal track works best on sidewalls for tall, stacked cargo, while vertical track on the floor suits loads that shift position between stops. Most service vans run both orientations rather than picking one.
How much does an e-track rail system cost installed?
Individual E-track strap sets run roughly $60 to $95 for a set, with frame-hook or rolling-idler tie-down kits running higher depending on rated capacity. Rail material itself is priced separately from the strap hardware.
Can I mix E-track brands on the same rail?
Spring and rotating fitting styles are not interchangeable across brands even when the slot spacing matches, so mixing brands risks a fitting that looks seated but isn't locked. Stick to one fitting style per rail run.
How much weight can E-track hold?
Individual E-track straps range from 833 lbs SWL on cam buckle styles to 3,300 lbs on frame-hook tie-down pairs, and the rail itself carries a separate distributed load rating. Total securement must equal at least half the cargo's weight per federal cargo securement rules.
Do I need special tools to install E-track in a cargo van?
Installation needs a drill, the correct mounting screws for your floor or wall thickness, and a stud finder to confirm structural backing. No specialty tools are required beyond standard fastener hardware.
How often should E-track straps be replaced?
Replace straps showing webbing fray, cut fibers, or ratchet slippage immediately, and inspect all E-track straps at every pre-trip check given daily van loading cycles. A strap that no longer holds full tension has already lost meaningful SWL.
One Last Thing
The detail crews skip most often is checking that the fitting is fully rotated or fully seated before walking away — a fitting that's 80% engaged still slides into the slot and looks secured, but it releases under the first hard brake. Run a hand-check on every fitting after loading, not just a visual glance, and that one habit prevents more shifted-load damage than any single hardware upgrade.
An e-track rail system built around correctly matched fittings, rated straps, and structural mounting keeps a cargo van's interior working like a flatbed with walls — adjustable, rated, and ready for whatever the next stop loads in. Shop the full line at TruckNTow, with free ground shipping on every order.
