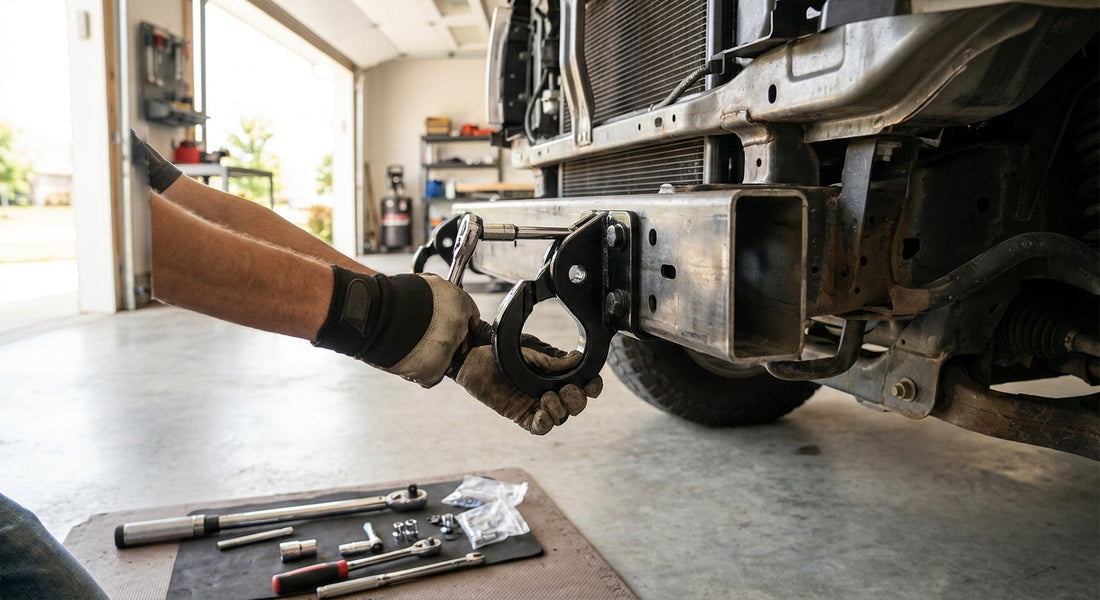

Installing tow hooks on a pickup truck frame turns a weekend project into a permanent recovery point that works with a snatch strap, chain, or snatch block whenever you're stuck, stranded, or pulling someone else out.
TL;DR
Most factory-drilled pickup frames already have the mounting holes for tow hooks — you're bolting into existing threaded holes, not drilling new ones, and the whole job takes under an hour with a torque wrench and the correct grade-8 bolts. Torque specs run 65-85 ft-lbs depending on hook size and frame material, and skipping the torque wrench is the single biggest reason tow hooks rip loose mid-pull. Verdict: DIY-friendly in 2026 if your frame has factory holes — Buy the hooks, skip the shop labor. Pair the hooks with a rated recovery rope or D-ring, and never hook to anything that isn't welded or bolted directly to frame steel.
Why this matters
A tow hook mounted to sheet metal, a bumper bracket, or anything that isn't structural frame rail will bend, shear, or launch off the truck under load. That's not a scare tactic — it's physics. A 3/4-ton truck stuck to the axles in mud can put 8,000-10,000 lbs of static load on a single recovery point before it breaks free, and a stamped-steel hook rated for looks instead of load will fail exactly when you need it.
Tow hooks done right in 2026 are still one of the cheapest upgrades a truck owner can make. Most half-ton and 3/4-ton frames already carry factory-drilled holes from the factory tow package, even on trims that didn't ship with hooks installed. That means no drilling, no welding, and no trip to a fabrication shop — just the right bolts and the right torque.
What you'll need
- Tow hooks rated for your truck's GVWR (check the hook's stamped rating, not just its size)
- Grade 8 bolts matching your frame's factory hole thread pitch (usually 12mm or 1/2-inch)
- Torque wrench rated to at least 100 ft-lbs
- Impact wrench or breaker bar for stubborn factory bolts
- Anti-seize compound for the bolt threads
- Jack stands or ramps if you need under-truck access
- Wire brush or degreaser for rust and road grime on the mounting holes
- A rated recovery point as backup — many owners add a Vulcan silver stake pocket D-ring assembly alongside frame hooks for a second anchor option
The steps
1. Locate the factory-drilled mounting holes
Most pickups built from the mid-2000s onward have two threaded holes per side, tucked behind or below the front bumper, stamped directly into the frame rail. Get under the front of the truck with a flashlight and look for a pair of holes roughly 3-4 inches apart, usually covered by plastic plugs if the truck never came with hooks. Confirm they're threaded into solid frame steel, not a plastic fascia bracket — this is the step most DIYers rush and regret.
2. Clean and inspect the mounting surface
Road salt and rust build up fast in these holes, especially on trucks running through winter conditions. Wire-brush the threads and the mating surface until you see bare metal, then wipe with degreaser. A hook bolted onto rust and grime looks tight on day one and works loose by month three.
3. Dry-fit the hook before torquing anything
Hold the hook against the frame and check that the bolt holes line up cleanly with no gap or misalignment. If the hook doesn't sit flush, you're either looking at the wrong mounting location or a hook shape that doesn't match your frame's factory bracket — stop here rather than forcing it.
4. Apply anti-seize and start the bolts by hand
Coat the bolt threads lightly with anti-seize before threading them in by hand for the first few turns. This prevents cross-threading and makes the hook removable years from now instead of rust-welded in place. Never start a bolt with a power tool — hand-starting catches thread damage immediately.
5. Torque to spec in a cross pattern
With both bolts started, torque them down in an alternating pattern — snug one, then the other, then bring each to final spec in two or three passes. Most factory tow hook mounts call for 65-85 ft-lbs, but check your hook manufacturer's spec sheet since ratings vary by hook size and steel gauge. Stopping at "feels tight" instead of using a torque wrench is the number one cause of hooks working loose within the first 500 miles.
6. Repeat on the opposite side
Don't install one hook and call it done — a single-point recovery hook concentrates load unevenly and increases the risk of frame twist under a hard pull. Mirror the same process on the passenger side so you have a matched pair.
7. Load-test before you actually need it
Once both hooks are torqued, hook up a rated strap to a second vehicle or a fixed anchor and apply light tension — not a full pull, just enough to confirm the hooks hold flush against the frame with no flex or bolt movement. This is the difference between finding a problem in your driveway versus finding it stuck in a ditch in January 2026.
Troubleshooting
- Hook doesn't sit flush against the frame — you're likely bolting into the wrong holes or a bumper bracket instead of the frame rail; recheck hook placement against your truck's factory tow package diagram.
- Bolts won't thread past the first turn — the factory holes are often painted over; run a tap through the threads before attempting to install the bolt.
- Torque wrench clicks but the hook still shifts slightly — check that you're using the correct bolt grade; grade 5 bolts under-torque compared to grade 8 and will never fully seat.
- Hook rusts through within a year — untreated mild steel hooks corrode fast in road salt; look for zinc-plated or powder-coated hooks rated for year-round exposure.
- Rattling noise after 1,000 miles — recheck torque; factory-coated bolts can loosen slightly as paint compresses under initial load, so a 500-mile re-torque check is worth doing.
- No factory holes exist on your frame — some trims genuinely skip the tow package; in this case, welding a mounting plate is the only reliable fix, and that's shop work, not a driveway job.
Tools and resources
Beyond the torque wrench and bolts, most working trucks pair frame-mounted tow hooks with a dedicated recovery line rather than relying on whatever strap happens to be in the cab. A Vulcan off-road recovery rope rated to 28,600 lbs breaking strength gives you stretch and shock absorption that a rigid chain doesn't, which matters when you're snatching a stuck vehicle rather than doing a slow static pull. Keep it stored in its bag, out of UV exposure, and inspect it before every use — sun-damaged synthetic rope loses strength fast.
What to do next
Tow hooks solve front-end recovery, but a lot of truck owners installing hooks in 2026 are also upgrading their rear towing setup at the same time. If you're adding a receiver hitch to round out your truck's towing capability, the step-by-step process for mounting a trailer hitch receiver on a pickup follows the same torque-and-inspect logic covered here.
FAQ
Do I need to drill new holes to install tow hooks? No, on nearly every pickup truck built since the mid-2000s, the frame already has factory-drilled and threaded holes for tow hooks even if your trim didn't ship with them installed.
What torque spec should I use for pickup truck tow hooks? Most tow hook mounts torque to 65-85 ft-lbs, but the exact number depends on hook size and bolt grade, so check the hook manufacturer's spec sheet before torquing down.
Can I install tow hooks myself, or do I need a shop? You can install tow hooks yourself in under an hour if your frame has factory holes; a shop is only necessary if your truck lacks mounting points and needs a welded bracket.
Is it safe to tow another vehicle using frame-mounted tow hooks? Yes, as long as the hooks are rated for the load and bolted into structural frame steel rather than a bumper bracket or plastic fascia mount.
How much weight can a pickup truck tow hook handle? Ratings vary by hook, but most half-ton and 3/4-ton frame hooks are rated between 6,000 and 10,000 lbs static load — check the stamped rating on the hook itself, not just the truck's tow capacity.
What's the difference between a tow hook and a D-ring recovery point? A tow hook bolts directly to the frame for a fixed anchor, while a D-ring assembly like a stake pocket mount offers a removable, rotating attachment point that some owners prefer for off-road recovery work.
Should I use a chain or a strap with frame-mounted tow hooks? A recovery rope or strap is generally safer than chain for snatch recovery because it stretches and absorbs shock load, while chain works better for slow, controlled static pulls.
How often should I re-torque tow hook bolts after installation? Check torque after the first 500 miles of driving, since factory coatings and paint on the bolt threads can compress slightly under initial load and loosen the fit.
One last thing
The detail most owners skip is the load test — bolting the hooks on and calling it done without ever applying tension means the first time those hooks see real load is the day you're actually stuck. Five minutes with a strap and a second vehicle in your own driveway beats finding out your torque was off in a ditch at 2 a.m.
