Mud flap hangers keep DOT-required flaps square behind the wheels instead of flapping loose, dragging on pavement, or ripping off on the interstate — and a proper install takes under an hour with basic hand tools.
TL;DR
Installing mud flap hangers on a commercial truck means mounting the bracket to the mudflap hanger bar or frame rail, bolting the hanger arm at the correct ride height, then clamping the flap so its bottom edge sits within 8 inches of the ground per most state regulations in 2026. Verdict: DIY-friendly — budget 30-45 minutes per axle position, a 1/2-inch drive ratchet set, and grade 5 hardware. Skip cheap stamped-steel hangers on a heavy-haul rig; go with a reinforced bracket if you're running gravel or construction routes. This guide covers how to install mud flap hangers step by step, plus the mistakes that cause hangers to snap within the first winter.
Why this matters
A mud flap hanger that's mounted wrong doesn't just look sloppy — it fails inspection. Most states enforce flap width and ground clearance rules under FMCSA guidance, and a DOT officer checking your rear axle setup in 2026 will flag a flap that's dragging, torn loose, or missing entirely on a commercial vehicle.
Beyond compliance, a loose hanger throws the flap into the tire at highway speed, which shreds the rubber and can send debris into the lane behind you. Fleet operators who run TruckNTow's tie-down and hardware catalog know the same rule applies here as it does to chain binders and straps: the fastener matters as much as the part it's holding.
What you'll need
- Mud flap hanger brackets (arm-style or bar-style, matched to your frame)
- Grade 5 or Grade 8 bolts, lock washers, and nyloc nuts (typically 3/8-inch or 1/2-inch)
- 1/2-inch drive ratchet and socket set
- Torque wrench (rated to at least 50 ft-lbs)
- Tape measure
- Center punch and drill with metal bit, if drilling new holes
- Anti-seize compound for the bolt threads
- A helper or jack stand to hold the flap in position while you mark it
If your rig doesn't already have a mounting bar, you'll need a mudflap hanger bar that clamps to the frame rail or bolts to the existing mounting holes on the rear crossmember. Check your frame width before ordering — most commercial trucks run 34 to 38 inches between rails.
The steps
1. Measure your ground clearance target first
Before anything touches the frame, measure from the ground up to where the bottom of the flap needs to sit. Most states cap this at 8 to 10 inches unloaded, and some (like California) require it under load — check your operating state's code before you drill a single hole. Getting this number wrong means redoing the whole install later.
Common mistake: measuring with the trailer unloaded when your route runs loaded most of the time. Measure at your typical ride height, not empty.
2. Position the hanger bracket against the frame
Hold the bracket where you intend to mount it — usually just behind the rear tire, centered on the wheel track — and mark the bolt holes with a center punch. On a bar-style hanger, clamp it loosely to the crossmember first so you can slide it side to side before committing.
Double-check the bracket clears the brake lines, air lines, and any exhaust routing before you mark final hole positions. A hanger that's an inch off can pinch a line within the first 500 miles.
3. Drill and mount the bracket
If you're drilling new holes, use a center punch to stop the bit from wandering, then drill through with a metal bit sized to your bolt diameter. Deburr the hole edges with a file so you're not cutting into the bolt threads over time.
Run anti-seize on the bolt threads, thread the lock washer and bolt through, and torque to the hardware manufacturer's spec — typically 35-50 ft-lbs for 3/8-inch grade 5 bolts. Don't just snug it by feel; a loose bracket vibrates loose within a few weeks of highway miles.
Common mistake: skipping the lock washer or nyloc nut. Vibration on a commercial chassis will back a plain nut off in under a month.

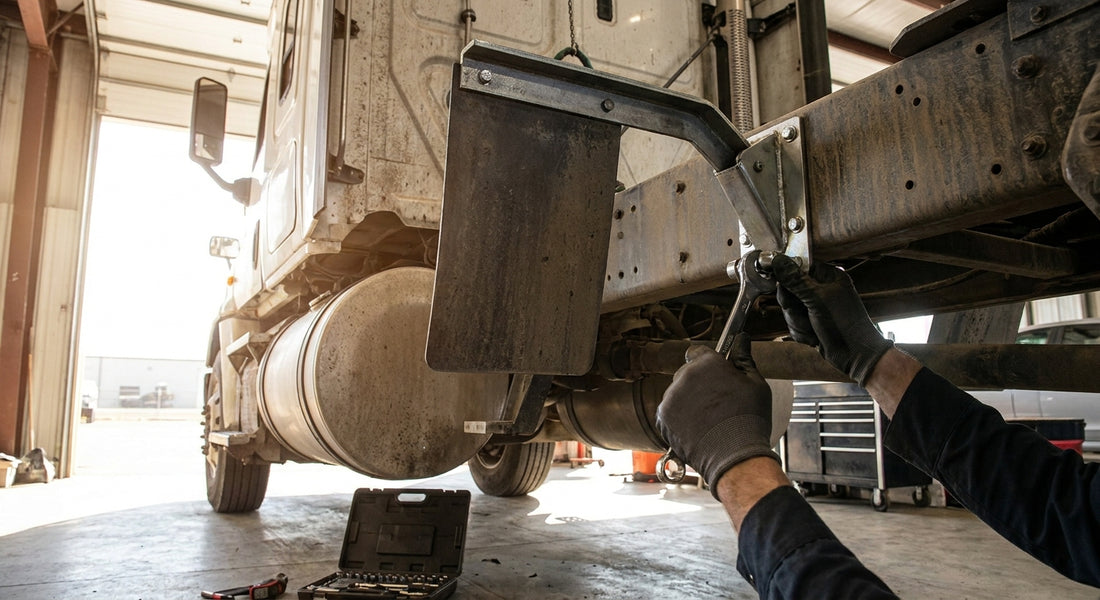

4. Attach the hanger arm
Bolt the swing arm or fixed arm to the bracket you just mounted. If it's a swing-style hanger, check that it pivots freely without binding — this lets the flap kick forward on debris impact instead of tearing at the mount point.
Set the arm angle so the flap will hang straight down and parallel to the tire, not angled inward or outward. An angled hanger throws mud sideways instead of down, which defeats the point of the flap.
5. Mount the flap to the arm
Sandwich the top of the flap between the arm and the backing plate, then run bolts through the pre-punched holes in the rubber. Use fender washers on the flap side so the bolt head doesn't pull through the rubber under vibration.
Check flap width against your tire — most commercial applications run flaps at least as wide as the tire tread, often 2 inches wider on each side to catch spray.
6. Set final height and torque everything down
With the flap hanging, measure again from the ground to the bottom edge. Adjust the arm position until you hit your target clearance from Step 1, then torque every bolt in the assembly to spec — bracket, arm, and flap mounting bolts all get checked.
Common mistake: setting height with the truck on level ground but running routes with heavy grade changes. Leave a half-inch of buffer if your routes include steep driveways or loading docks.
7. Road test and re-torque
Drive 50-100 miles, then re-check every bolt. New hardware seats in during the first drive cycle, and a bolt that read 40 ft-lbs on install day can read 32 ft-lbs after the metal compresses. This is standard practice on any bolted accessory mount, not unique to mud flaps.
Troubleshooting
Flap drags on the ground when loaded. Your clearance measurement was taken empty. Remeasure under a representative load and raise the arm mount accordingly.
Hanger arm rattles or vibrates loose. Check for a missing lock washer or under-torqued bolt. If the bracket itself is flexing, you likely need a heavier-gauge bracket for the load you're running.
Flap flips up and hits the fender well. The arm angle is wrong, or you've mounted a flap that's too short for the wheel travel on your suspension. Add 1-2 inches of length or adjust the swing-arm pivot tension.
Bolt heads strip during torque-down. You're using hardware store grade-2 bolts on a job that needs grade 5 or 8. Swap the hardware before you finish the install — this isn't a spot to save $3.
Bracket cracks within a few months. Stamped steel brackets aren't built for gravel routes, construction sites, or heavy off-highway use. Move to a cast or reinforced bracket if your duty cycle includes rough terrain.
Flap doesn't cover full tire width. Undersized flaps are a common DOT citation point. Measure your tire width plus 2 inches per side before ordering replacement flaps.
Tools and resources
- 1/2-inch drive ratchet and socket set
- Torque wrench (50+ ft-lb range)
- Center punch, metal drill bit, deburring file
- Grade 5 or 8 bolts with lock washers and nyloc nuts
- Tape measure and a copy of your state's mud flap clearance rule
If you're doing other rear-end electrical work at the same time — running new marker lights or checking your plug — the 7-way trailer plug wiring guide covers the same rear-crossmember area and is worth handling in the same shop session.
What to do next
Once the flaps are mounted and torqued, check the rest of your rear lighting while you're back there — a loose hanger install is often discovered at the same inspection as a burned-out marker light. The LED strobe light installation guide walks through mounting and wiring for the same general area of the truck if you're adding visibility lighting in 2026.
FAQ
What's the best way to install mud flap hangers on a commercial truck? Mount the bracket to the frame or crossmember first, attach the swing arm, bolt the flap to the arm, then set final ground clearance and torque every bolt to spec. Re-check torque after a 50-100 mile road test.
How much ground clearance do mud flaps need? Most states cap it at 8-10 inches from the ground to the bottom of the flap, though some require this measurement under load rather than empty. Check your operating state's code before finalizing hanger height.
Do I need grade 8 bolts for mud flap hangers? Grade 5 bolts handle most standard hanger installs, but grade 8 is worth the upgrade on heavy-haul or off-road rigs where vibration and load stress are higher. Always use lock washers or nyloc nuts regardless of grade.
Is a swing-arm hanger better than a fixed hanger? Swing-arm hangers let the flap kick forward on impact instead of tearing at the mount, which extends bracket life on rough routes. Fixed hangers are simpler and fine for highway-only duty cycles.
How long does it take to install mud flap hangers? Budget 30-45 minutes per axle position if you're drilling new mounting holes, less if bolting to existing holes. A full rear-axle set on both sides typically runs 1-1.5 hours including the road-test re-torque.
Why did my mud flap hanger crack after a few months? Stamped-steel brackets aren't rated for constant gravel, construction site, or off-highway vibration. Switch to a cast or reinforced bracket if your duty cycle includes rough terrain.
Can I install mud flap hangers without drilling new holes? Yes, if your crossmember already has factory mounting holes or you use a clamp-style bar that doesn't require drilling. Bar-style hangers are the faster option for fleets rotating flaps across multiple trucks.
What torque spec should I use on mud flap hanger bolts? Most 3/8-inch grade 5 bolts torque to 35-50 ft-lbs, but always check the hardware manufacturer's spec sheet for your specific bracket. Re-torque after the first 50-100 miles since new hardware seats in during the first drive cycle.
One last thing
The bolt you skip torquing is the one that costs you a roadside inspection delay — every commercial vehicle mud flap citation traces back to either missing hardware or a bracket mounted without checking state clearance rules first. Torque wrenches aren't optional on this job, even though the part looks simple enough to eyeball.
