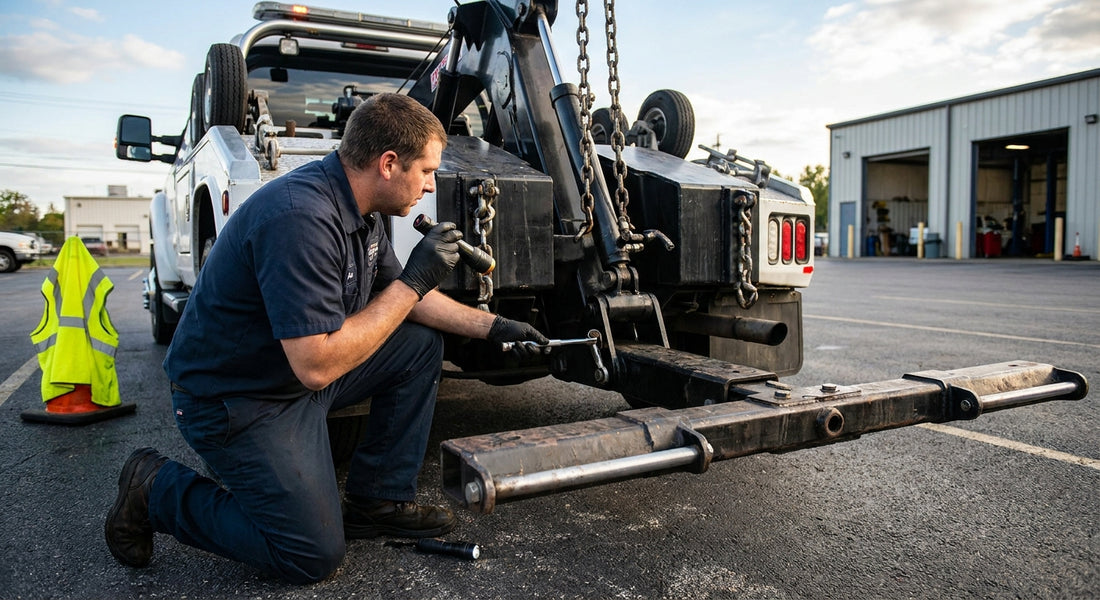

A cracked wheel lift arm or a frayed sling doesn't announce itself until the vehicle you're pulling comes loose on the interstate, and that's the reason wheel lift inspection before every tow isn't optional for professional operators in 2026.
- Wheel lift inspection before towing means checking arms, cylinders, straps, and pins on every pre-trip -- skip it and you risk a dropped load.
- VULCAN wheel tie-down kits rated to 3,300 pounds safe working load still need a visual and load check before each 2026 run.
- A cracked weld or 10% strap wear is grounds to pull the rig from service immediately -- no exceptions.
- Log every inspection on a driver's vehicle inspection report -- DOT compliance runs on paper trail, not memory.
Why this matters
Wheel lift failures rarely start big. A hairline crack in a casting, a hydraulic seal weeping fluid, or a wheel lift strap worn to half its rated thickness all look survivable on the lot. On the highway, at 60 mph, with 4,000 pounds of vehicle hanging off the boom, none of them are.
Federal pre-trip inspection rules under 49 CFR 396 already require operators to check load-securement equipment before a run, and wheel lift components fall squarely inside that requirement for any tow truck rig. TruckNTow has supplied recovery rigging to trucking professionals since 1959, and the pattern hasn't changed in decades: roadside failures trace back to skipped inspections, not defective gear.
A thorough wheel lift inspection in 2026 takes 10 to 15 minutes. A roadside failure costs hours, a damaged customer vehicle, and in the worst case, a fatality. That math doesn't need explaining twice.
What you'll need
- Flashlight or inspection light for shadowed casting joints
- Wire brush to clear road grime before a visual crack check
- Tape measure for strap width and pin diameter checks
- Torque wrench if the lift specifies fastener torque values
- Replacement clevis pins and cotter keys on hand
- A wheel lift strap or harness rated to at least 3,300 pounds safe working load
- A driver's vehicle inspection report form to document findings
The steps
1. Inspect the wheel lift arms and castings for cracks
Run the flashlight along every weld seam on the boom arms, the crossbar, and the mounting brackets. Cracks propagate from stress points, so pay closest attention to where the arm pivots and where the yoke bolts on.
A hairline crack under 1/8 inch that's growing is still a stop-work condition -- cracks don't heal, they spread under cyclic load. Any visible crack in a load-bearing casting takes the unit out of service until welded or replaced by the manufacturer, never field-repaired with a bead from a shop welder.
Common mistake: operators check the arms once at the start of a shift and skip the check on the third or fourth tow of the day, right when fatigue cracking is most likely to show.
2. Check hydraulic cylinders and hoses for leaks
Extend and retract the lift through a full cycle and watch the cylinder rod for streaking fluid. A wet rod means a failing seal, and a failing seal means the lift can drift or drop under load without warning.
Check hose fittings for weeping at the crimp, and flex each hose by hand to feel for soft spots or bulges that signal internal delamination. A hose that bulges under normal operating pressure gets replaced before the next tow, not after the shift.
Expected outcome: the arm holds position with zero drift for 60 seconds under a test load. Any downward creep means the cylinder needs service now.
3. Test the cable or chain tension and wear
If the wheel lift uses a cable, look for broken wire strands -- a single broken strand in a laid cable is a warning sign, and six broken strands in one lay length is a condemning defect under most fleet safety standards.
Chain-driven lifts need a stretch check: measure a known chain length against the manufacturer spec, and retire the chain once stretch exceeds roughly 3%. Worn sprockets combined with a stretched chain compound each other, so replace both together rather than one at a time.
4. Examine the yoke, hooks, and pins for deformation
Hooks that have opened past their original throat gap have been overloaded at some point, even if nobody remembers it happening. Measure the throat opening against a new hook of the same model -- more than 10% spread means the hook gets scrapped.
Check every clevis pin for scoring, egg-shaped wear, or a bent shaft. A pin that's worn oval instead of round lets the yoke shift under load, which puts side stress on components engineered for straight pull only. Buy replacement pins in matched sets rather than mixing wear states.
5. Verify strap and harness condition
Run a hand along the full length of every wheel lift strap or tire harness, feeling for cuts, fraying, or UV brittleness before looking at it visually. A strap that feels stiff or chalky has lost tensile strength even if the webbing looks intact.
Check stitching at every load-bearing seam for pulled or broken threads, and inspect ratchet mechanisms for bent pawls that won't hold tension. The VULCAN PROSeries wheel tie-down kit carries a 3,300 pound safe working load rating per strap, but that rating only holds if the webbing and hardware pass inspection every single run.
Common mistake: crews replace a torn strap but leave its matched partner in service, creating a mismatched set with different wear histories under the same load.
6. Check the hydraulic or pneumatic controls and lockout
Cycle the control valve through raise, lower, and hold, confirming the lift locks in position without a control input. A control that requires constant pressure to hold height is bypassing internally and needs a rebuild before the next dispatch.
Test the emergency lowering mechanism if the unit has one -- this is the system that matters most on the one day a hydraulic line fails mid-lift.
7. Confirm lighting and reflective marking
A wheel lift working after dark needs functioning position lights and reflective tape visible from the rear approach. Confirm every bulb lights and every reflective strip is clean and unpeeled -- a dark wheel lift arm at a roadside recovery is a strike hazard for passing traffic.
8. Document findings on an inspection report
Every finding from steps 1 through 7 gets written down, not remembered. A driver's vehicle inspection report creates the paper trail that protects the operator and the fleet if a component fails later and the question becomes whether it was checked.
Expected outcome: a signed, dated report with specific findings, not a checkbox marked "OK" out of habit.
“A single broken strand of wire on a laid cable is a warning; the rig doesn't go out again until that cable is replaced.”
Troubleshooting
- Lift drifts down under load with the control neutral -- the cylinder seal is failing; pull the unit from service and schedule a hydraulic rebuild rather than topping off fluid and hoping.
- Strap won't hold ratchet tension -- check the pawl spring first; a bent pawl lets tension bleed off mid-tow even when the webbing itself is fine.
- Chain sags between sprockets after tensioning -- measure stretch against spec; a chain past 3% stretch won't hold tension no matter how it's adjusted.
- Hook throat looks slightly wider than its mate -- retire it now; a stretched hook has already been overloaded once and will fail at a lower load the second time.
- Casting shows surface rust in a hairline pattern -- that pattern often traces a hidden crack; clean the area and inspect under direct light before clearing it for service.
- Pin won't seat flush in the yoke -- check for an egg-shaped wear pattern; a worn pin bore lets the whole assembly shift under side load.
Tools and resources
- Flashlight, wire brush, tape measure, and torque wrench for the physical checks above
- Matched replacement pins and cotter keys stocked before they're needed mid-route
- A rated tie-down or harness set kept as backup inventory, not a last-minute purchase
- A stack of inspection report forms in the cab, filled out the same day the check happens
- Reference material on axle straps built for wheel lift trucks for operators comparing strap options against current inventory
What to do next
Inspection is only half the discipline -- the paperwork side matters just as much when a fleet safety officer or a roadside DOT check asks for records. The guide on filling out a driver's vehicle inspection report walks through what belongs on the form and how long records need to be kept in 2026.
FAQ
How often should wheel lift inspection happen?
Wheel lift inspection happens before every tow, as part of the standard pre-trip check required under 49 CFR 396. A monthly deep inspection covering hydraulic seals and casting welds supplements the daily visual check in 2026 fleets.
What's the safe working load for a typical wheel lift strap?
Most VULCAN wheel dolly tire harnesses carry a 3,300 pound safe working load per strap in a 4-pack set. That rating assumes the webbing and stitching pass a pre-tow inspection with no cuts, fraying, or UV brittleness.
Is a cracked wheel lift arm ever safe to keep using?
No -- any visible crack in a load-bearing wheel lift casting takes the unit out of service immediately. Cracks propagate under cyclic load and don't stabilize on their own, regardless of how small they look on day one.
How much chain stretch is too much on a wheel lift?
Chain stretch beyond roughly 3% of the manufacturer's original length is grounds for replacement. Stretched chain paired with worn sprockets compounds the failure risk, so both typically get replaced together.
What's a sign a hook needs to be retired?
A hook throat opening more than 10% wider than a new hook of the same model has already been overloaded and should be scrapped. Measuring against a fresh hook is more reliable than eyeballing it.
Do wheel lift inspections need to be documented?
Yes -- a signed, dated driver's vehicle inspection report with specific findings protects both the operator and the fleet if a component fails after the check. A blank checkbox marked 'OK' doesn't hold up under review.
Can a bent clevis pin be reused?
No -- a pin worn into an oval or egg shape lets the yoke shift under load and puts side stress on parts built for straight pull only. Replace pins in matched sets rather than mixing wear states.
What's the first thing to check on a wheel lift before a tow?
Start with the arms and castings for cracks along every weld seam, since a compromised casting is the fastest path to catastrophic failure. Straps, pins, and hydraulics follow after the structural check clears.
One last thing
The check that gets skipped most often isn't the crack inspection -- it's the strap that feels stiff to the touch but still looks fine to the eye. Webbing loses tensile strength from UV exposure long before it shows visible damage, and a hand-feel check across the full length catches that failure mode faster than any flashlight pass. Build that thirty-second habit into every pre-trip in 2026 and the visual checks handle the rest.
