A dump trailer loaded with three yards of wet gravel throws thousands of pounds of shock load through the coupler every time the axle drops into a pothole, and a pintle hitch that's undersized, mismatched, or bolted on with the wrong shank turns that shock load into a snapped coupler on the shoulder of the highway.
- Choosing a pintle hitch for a dump trailer starts with matching hook capacity to loaded GVWR, not curb weight.
- A 3-inch lunette eye needs a 3-inch pintle hook throat; mismatched eyes rock and wear fast.
- Rigid mounts suit fixed-height setups; multi-hole mounts fix height mismatches between truck and trailer.
- Grade 70 safety chains rated at or above the hitch's capacity are required, not optional, on loaded runs.
- Skip mounts with no continuous-weld spec — they crack faster under repeated dump-trailer loading cycles.
Why This Matters
Dump trailers get overloaded more often than flatbeds and car haulers because operators judge capacity by the bed's visual fill line instead of the coupler's rated weight, and a pintle hitch under load behaves nothing like a ball hitch — the lunette eye rides loose in the hook's throat by design, which is what lets the trailer articulate over uneven ground without cracking the coupler. That flexibility is the entire point of running a pintle setup on a dump trailer instead of a ball, but it only works when hook capacity, mount, and lunette eye diameter are matched to each other and to the trailer's loaded GVWR, not its curb weight. Get any one of those wrong and the mismatch shows up as rattling, elongated pin holes, or a cracked mounting plate within a season of regular hauling. Before buying anything, check your trailer's data plate against a truck hitch chosen by tow rating — the pintle hook has to clear the lowest-rated link in that chain, which is usually the receiver itself. TruckNTow has been supplying towing accessories to working fleets since 1959, and heading into 2026 the pintle hitch failures that come through warranty conversations almost always trace back to a capacity or shank mismatch made at the counter, not a bad weld.
What You'll Need
TruckNTow's pintle mount lineup covers several height-and-hole configurations, so gather your measurements before you order anything:
- Tape measure or calipers to check shank diameter, mount height, and lunette eye size
- A torque wrench rated to at least 450 ft-lb for mounting bolts
- Safety chains rated at or above the pintle hook's capacity
- Anti-seize compound for the hook pin
- Your dump trailer's data plate (loaded GVWR and coupler rating)
- 30 to 45 minutes for install, torque, and a test hookup
The Steps
1. Confirm loaded GVWR against pintle hook capacity
Pintle hooks are sold in rough capacity tiers — 10,000 lb, 16,000 lb, 25,000 lb, and heavy combination hooks rated past 60,000 lb for tandem-axle dump trailers hauling aggregate or debris. Match the hook to what the trailer weighs full, including the load, not the empty tare weight stamped near the axle. The common mistake is sizing the hook to the truck's tow rating instead of the trailer's actual loaded weight, which leaves a hook technically strong enough for the truck but undersized for a trailer running near its GVWR on every job.

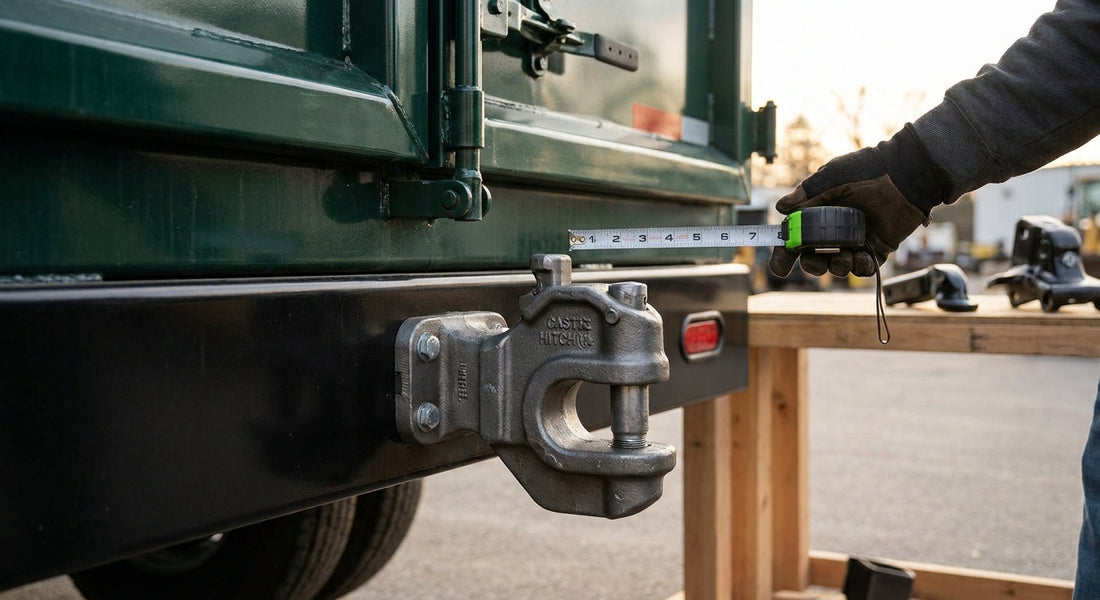

2. Measure the lunette eye before buying the hook
Lunette eyes come in a handful of standard diameters — 2-5/16 inch, 3 inch, and 4 inch are the ones you'll see on dump trailers. A 3-inch eye dropped into a hook sized for 2-5/16 inch rocks side to side under load and wears the throat of the hook prematurely; an eye that's too small for the hook's throat does the same thing in reverse. Measure the eye on the trailer tongue before ordering the hook, not after.
3. Pick a mount that fits your receiver class
Pintle mounts adapt a standard receiver tube to a multi-height pintle hook, and getting the wrong one is the second most common return reason after capacity mismatches. Class 3 and Class 4 receivers typically run a 2-inch square tube, while heavier Class 5 setups step up to 2.5 inch — check the differences between hitch classes before ordering a mount, because a shank built for a 2-inch receiver will not seat in a 2.5-inch tube without an adapter, and running it loose in an oversized tube is worse than running no mount at all.
4. Verify shank length and height offset
Multi-hole pintle mounts exist specifically because the truck's receiver height and the trailer's coupler height rarely line up out of the box. A shank that's too short leaves the mount bottomed out against the bumper before the hook reaches trailer height; one that's too long puts excess leverage on the receiver pin. Measure the drop or rise you actually need between the receiver and the trailer tongue, then pick a mount with enough hole positions to dial that in exactly rather than forcing it with washers or blocking.
5. Torque the mounting hardware to spec
Bolt-on pintle plates and receiver-mounted hooks both rely on the mounting hardware staying at spec torque, and under-torqued bolts let the plate walk under repeated shock loading until the bolt holes elongate. Torque to the hardware manufacturer's spec — typically in the 400 to 450 ft-lb range for grade 8 mounting bolts on heavy pintle setups — and recheck after the first 50 miles of loaded hauling, since new hardware seats and loosens slightly on the first few hard pulls.
6. Match safety chains to the hook's capacity
Chains are not a backup system on a pintle setup, they're a required load path if the coupling ever separates, and they need a working load limit at or above the pintle hook's rating. A Grade 70 binder chain rated at 6,600 lb safe working load covers light and mid-weight dump trailer setups; tandem-axle trailers running near 16,000 lb GVWR need chain rated to match, not whatever chain happened to be in the truck bed. Cross the chains under the tongue with just enough slack to turn, never so much slack that they drag.
7. Run a static and dynamic hookup test
Jack the trailer tongue to hook height, connect, and physically pull up and side to side on the coupling to check for play before it ever sees a load. Then run a short, low-speed test pull — a few hundred feet, empty or lightly loaded — and listen for clunking at the coupler that wasn't there on the static check. That clunk almost always means the eye-to-hook fit is looser than the spec sheet implied.
“If the lunette eye rocks side to side on the pintle hook at a standstill, the pairing is wrong and no amount of torque fixes it.”
Troubleshooting
- Lunette eye rattles in the hook's throat — the eye diameter doesn't match the hook. Replace with the correct size instead of shimming; shims wear through in weeks.
- Mounting plate cracks near the weld — the setup has been running past its rated capacity or duty cycle. Step up to the next capacity tier rather than replacing the same hook.
- Coupler won't sit flush at hookup — height mismatch between receiver and trailer tongue. Swap to a mount with more hole positions instead of forcing it with blocking.
- Hook pin won't seat cleanly — corrosion or paint buildup in the pin bore. Clean the bore and apply anti-seize before reinserting.
- Trailer sways or hunts at highway speed — usually a worn or mismatched eye-to-hook fit, not a weight distribution problem like it would be on a ball hitch.
- Safety chains dragging the pavement — chains cut too long. Cross and shorten so there's only enough slack to complete a full turn.
Tools and Resources
Beyond the pintle hook itself, a dump trailer setup running into the 2026 season needs the mount, correctly rated chains, and a torque wrench that actually reaches 450 ft-lb — a 3/8-inch drive click wrench won't get there. TruckNTow stocks the mounts, chains, and torque hardware together, since sourcing them separately delays a hauling job. For the chain-and-coupling side specifically, walk through how to attach safety chains on a trailer correctly before the first loaded run of the year; it covers crossing patterns and slack that apply directly to pintle setups.
What to Do Next
Once the hitch, mount, and chains are matched and torqued, the next failure point on a dump trailer is usually the tarp system or the tongue-mounted storage, not the coupling — both take repeated abuse from the same loading cycles that stress the hitch. Confirm the coupling is solid first, then move on to the rest of the trailer's wear points before the 2026 hauling season gets busy.
FAQ
How do I choose a pintle hitch for a dump trailer?
Match the pintle hook's capacity to your dump trailer's loaded GVWR, confirm the lunette eye diameter, and pick a mount with the right shank size for your receiver. Skipping the GVWR check is the most common reason a hitch fails within a season.
What size lunette eye do I need for a pintle hook?
Most dump trailers run a 2-5/16 inch, 3 inch, or 4 inch lunette eye, and the eye has to match the hook's throat exactly. A mismatched eye rocks under load and wears the hook prematurely, usually within a few months of regular hauling.
Is a pintle hitch better than a ball hitch for a dump trailer?
A pintle hitch handles the articulation of uneven job sites better than a ball because the lunette eye is designed to ride loose in the hook's throat. Ball hitches are rigid and transmit more shock load into the tongue on rough ground.
What capacity pintle hook do I need for a tandem-axle dump trailer?
Tandem-axle dump trailers typically need a hook rated 16,000 lb or higher, depending on the loaded GVWR stamped on the data plate. Always size to the loaded weight, not the trailer's empty tare weight.
How much does a pintle hitch mount cost in 2026?
Pintle mounts run roughly $60 to $110 in 2026 depending on height range and hole count, with heavier multi-hole mounts costing more than fixed single-height versions. The hook itself is typically a separate purchase from the mount.
Do I need special safety chains for a pintle hitch?
Yes, safety chains on a pintle setup need a working load limit at or above the pintle hook's rating, not whatever chain happens to be in the truck bed. A Grade 70 chain rated 6,600 lb safe working load covers light to mid-weight dump trailers.
Why does my pintle hitch rattle when the trailer is loaded?
Rattling almost always means the lunette eye diameter doesn't match the hook's throat size. Replace the eye or hook with a matching size instead of shimming the gap, since shims wear through quickly under load.
How often should I torque-check a pintle hitch mount?
Recheck mounting bolt torque after the first 50 miles of loaded hauling and then at the start of each hauling season, since new hardware seats and loosens slightly on the first few hard pulls.
One Last Thing
Most pintle hitch failures on dump trailers show up as a cracked mounting plate, not a broken hook — the hook is almost always rated for more than the plate that holds it, so the plate becomes the weak link the moment the trailer runs a season past its intended duty cycle. Check the mount rating as carefully as the hook rating before the next loaded run.
