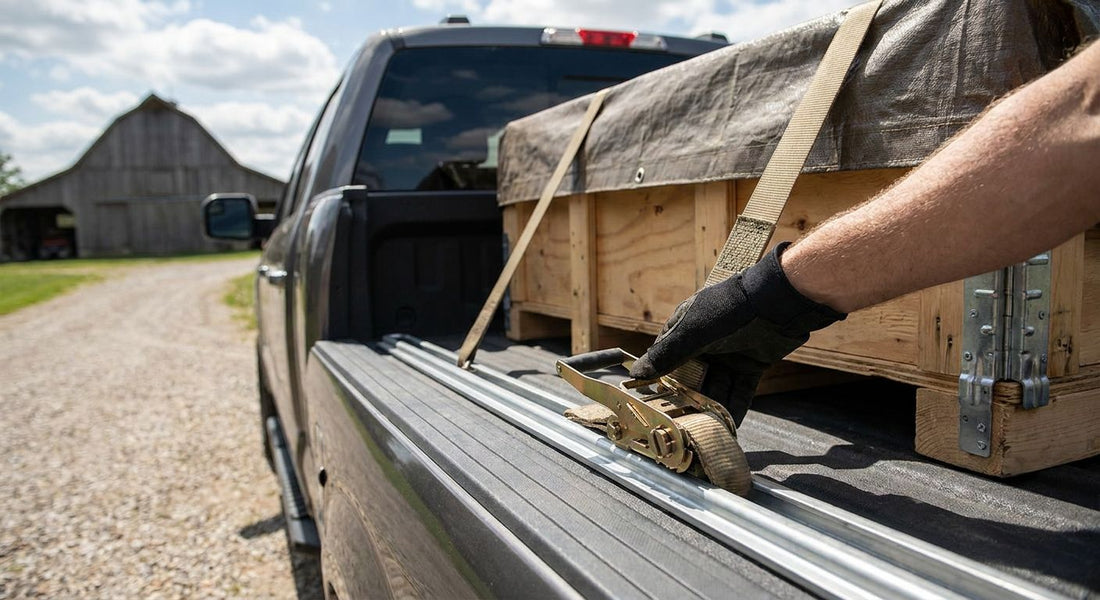

Imagine backing off the highway to fuel up and hearing that unmistakable clank of cargo shifting inside the bed — a load that was anchored to the wrong slot on your truck bed tie-down rail, or tensioned at the wrong angle, has just worked itself loose at 65 mph. Truck bed tie-down rails, whether stake pocket, E-track, or side-rail channel, only do their job when the hardware, angle, and tension are matched to the load, and getting that wrong is how straps fail and cargo shifts mid-haul.
- Anchor cargo with tie-down rails by matching hardware to the slot type, then tensioning in stages — never crank one strap tight before the others are set.
- A 3,300-pound safe working load tie-down, used four per vehicle, covers most car-hauling and pickup-bed loads in 2026.
- Route straps at roughly a 45-degree angle to the rail for maximum holding force; flat or vertical angles cut effective capacity fast.
- Re-check tension after the first 25-50 miles — synthetic webbing and cargo settling both loosen straps early in a haul.
- VULCAN ProSeries wheel and axle tie-down kits are built for stake pocket and E-track rail systems and rated for repeated commercial use.
Why This Matters
A cargo shift inside a truck bed or on a flatbed isn't just an inconvenience — it's a DOT violation waiting to happen and a liability claim if it damages the load or another vehicle. Federal cargo securement rules (49 CFR 393.106) require at least one tie-down for every 10 feet of article length, with a minimum of two, but most professional haulers run four points per vehicle regardless of length because rail-mounted tie-downs redistribute load force across the deck instead of concentrating it at two anchors. Truck bed tie-down rails exist to give you flexible anchor points instead of fixed eye bolts, but that flexibility only pays off when you're choosing the right slot, hook, and strap combination for the cargo in front of you in 2026.
What You'll Need
- A truck bed with stake pocket, E-track, or side-rail tie-down channels already installed
- Ratchet straps or lasso-style tie-downs rated at minimum 3,300 pounds safe working load — the VULCAN wheel tie-down kit covers wheel-based anchoring on most standard rail spacing
- Compatible hardware for your rail type: E-track fittings, stake pocket D-rings, or flat hooks for side-rail channel
- A tape measure to confirm rail spacing against your cargo's tie-down points
- Corner protectors if the load has sharp edges that will contact the webbing
- 10-15 minutes per vehicle or pallet, longer on the first attempt while you're learning the rail's fitting pattern
Skip any of these and you're improvising hardware mid-load, which is exactly when mismatched hooks slip out of a stake pocket at a red light.
The Steps
1. Identify Your Rail Type and Load Rating
Stake pocket rails, E-track, and side-rail channels each take different fittings, and mixing them up is the single most common reason a tie-down fails to seat. Check the stamped load rating on the rail itself — most commercial stake pockets are rated for 3,300 to 5,400 pounds per point, and E-track sections typically max out around 2,000 pounds per fitting unless it's a heavy-duty horizontal run. Expected outcome: you know exactly which hook, D-ring, or fitting style locks into your rail before you touch a strap. Common mistake: assuming all E-track is interchangeable — vertical and horizontal E-track use different fitting orientations and forcing one into the other cracks the plastic clip.
2. Position the Load Against the Rail Track
Set the cargo so its natural tie-down points — wheel wells, pallet corners, frame rails — line up close to existing slots in the rail, minimizing the distance the strap has to travel diagonally. Expected outcome: each strap runs a short, direct path from cargo to rail with minimal slack to take up during ratcheting. Common mistake: loading first and adjusting position after, which usually means at least one strap ends up running the full width of the bed at a shallow, weak angle.
3. Select the Right Tie-Down Hardware for the Slot
Snap hooks, flat hooks, and chain anchors each seat differently, and using a flat hook in a stake pocket built for a chain anchor leaves play in the connection that shows up as slack fifty miles into the trip. Match the hook geometry to the rail's opening shape rather than forcing whatever hardware is already on the strap. Expected outcome: the hook seats fully and can't rotate or walk out under vibration. Common mistake: using an open snap hook on a rail with no positive lock, which can back out over rough pavement.
4. Route and Angle the Strap Correctly
Run each strap at roughly a 45-degree angle from the rail to the cargo's anchor point — this angle balances downward and lateral holding force better than a near-vertical or near-horizontal run. A strap running nearly flat across the bed does almost nothing to stop vertical bounce, while one running too steep does little to stop the load from sliding forward under braking. Expected outcome: four straps forming an X or diamond pattern over or around the cargo. Common mistake: running all four straps parallel in the same direction, which secures against one type of force and leaves the load free to shift in every other direction.
5. Tension the Ratchet in Stages
Snug all four straps by hand first, then go back and fully ratchet each one in sequence rather than cranking one strap to full tension before touching the others. Working straps in stages keeps the load centered instead of pulling it toward whichever anchor point got tightened first. Expected outcome: even tension across all points with no single strap bearing more load than the others. Common mistake: over-tightening one corner, which can twist a pallet or dent a vehicle's rocker panel before you've even tensioned the opposite side.
6. Protect Edges and Re-Check After the First Miles
Any strap that crosses a sharp edge — a steel pallet frame, a fender lip, a crate corner — needs a corner protector between the webbing and the edge, because synthetic webbing abrades and can cut through in under an hour of highway vibration without one. Pull over after the first 25-50 miles and re-check every ratchet; synthetic strap material stretches slightly under initial load and settling cargo can leave straps noticeably looser than when you left the yard. Expected outcome: tension holds steady for the rest of the haul. Common mistake: skipping the re-check because the load felt secure at departure — that's exactly when straps have the most give left in them.
Troubleshooting
- Hook keeps popping out of the stake pocket. The pocket opening is likely wider than the hook's throat — switch to a chain anchor style or a flat hook with a locking tab instead of an open snap hook.
- Strap won't reach full tension. You're probably starting with too much slack; pull the strap hand-tight before engaging the ratchet handle so the mechanism only has to close the last few inches.
- Webbing is fraying at the rail edge. That's an unprotected sharp edge cutting into the strap — add a corner protector immediately and inspect the strap for cuts before reusing it.
- E-track fitting won't lock in. Vertical and horizontal E-track use different fitting angles; rotate the fitting 90 degrees before forcing it, which usually seats it without damage.
- Load shifted despite four tight straps. Check the angle pattern — if all four straps run in roughly the same direction, add a cross strap to counter lateral movement the original pattern didn't cover.
- Rail bolts feel loose after repeated use. Stop hauling on that rail section until the mounting hardware is re-torqued; a loose rail mount defeats every tie-down anchored to it regardless of strap quality.
Tools and Resources
- Ratchet or lasso-style tie-downs rated to at least 3,300 pounds SWL for the majority of vehicle and pallet loads
- Corner protectors for any load with exposed metal or hard plastic edges
- A tape measure and the rail's stamped spacing to plan strap routing before loading
- A guide to measuring the right ratchet strap length if you're unsure whether a 27-foot or longer strap fits your rail-to-cargo distance
- A logbook or inspection habit for checking rail hardware condition between hauls
What to Do Next
Once the anchoring routine is second nature on stake pocket or side-rail systems, the next skill worth building is E-track-specific rigging for enclosed trailers and cargo vans, where fitting orientation and horizontal-versus-vertical track matter even more. Truck bed tie-down rails and E-track share the same underlying principles — hardware match, angle, staged tension — but the fitting hardware differs enough that it's worth a dedicated pass before your first enclosed-trailer run in 2026.
FAQ
What's the best way to anchor cargo using truck bed tie-down rails?
Match the hook or fitting to the rail type, position the load close to existing slots, and tension all straps in stages rather than one at a time. A 45-degree strap angle with four points per vehicle covers most standard hauls in 2026.
Is E-track better than stake pocket rails for tie-down?
Neither is universally better — E-track offers more adjustable anchor positions along the track, while stake pockets typically carry a higher per-point load rating around 3,300 to 5,400 pounds. Choose based on the rail already installed on your bed or trailer.
How much weight can a truck bed tie-down rail hold?
Most commercial stake pocket rails are rated between 3,300 and 5,400 pounds per anchor point, while standard E-track fittings max out closer to 2,000 pounds unless it's a heavy-duty horizontal section. Check the stamped rating on the rail itself before loading.
How many tie-down points does a vehicle need on a rail system?
Federal cargo securement rules require a minimum of two tie-downs, but four points per vehicle is standard practice among professional haulers because it distributes force more evenly across the rail. Fewer points concentrate more load on each anchor.
What angle should tie-down straps be at?
Route straps at roughly a 45-degree angle from the rail to the cargo's anchor point for the best balance of vertical and lateral holding force. Flat or near-vertical angles reduce the strap's effective capacity even when fully tensioned.
How often should you re-check tension on tie-down straps?
Re-check every strap after the first 25 to 50 miles of a haul, since synthetic webbing stretches slightly under initial load and cargo settles during early transit. After that, a check at each fuel stop is standard for longer runs.
Can you use ratchet straps and chain anchors on the same rail?
Yes, as long as both are rated for the rail's fitting type and load capacity — mixing hardware styles is common on mixed loads like a vehicle secured with rim straps alongside pallet freight on chain-anchor straps. The rail doesn't care which style is used as long as the fitting seats correctly.
One Last Thing
Most load shifts traced back to rail-anchored cargo aren't a strap failure at all — they're a fitting that never fully seated in the slot, which means the visual check before you pull away matters more than the torque on the ratchet handle. TruckNTow has been supplying trucking professionals with tie-down and recovery gear since 1959, and the recurring lesson from that much time on the road is simple: a strap that looks tight but sits on a half-seated hook will let go before one that's slightly under-tensioned but fully locked in. Check the seat first, then the tension. Shop the full tie-down and rail hardware line at TruckNTow and get free ground shipping on the order.
